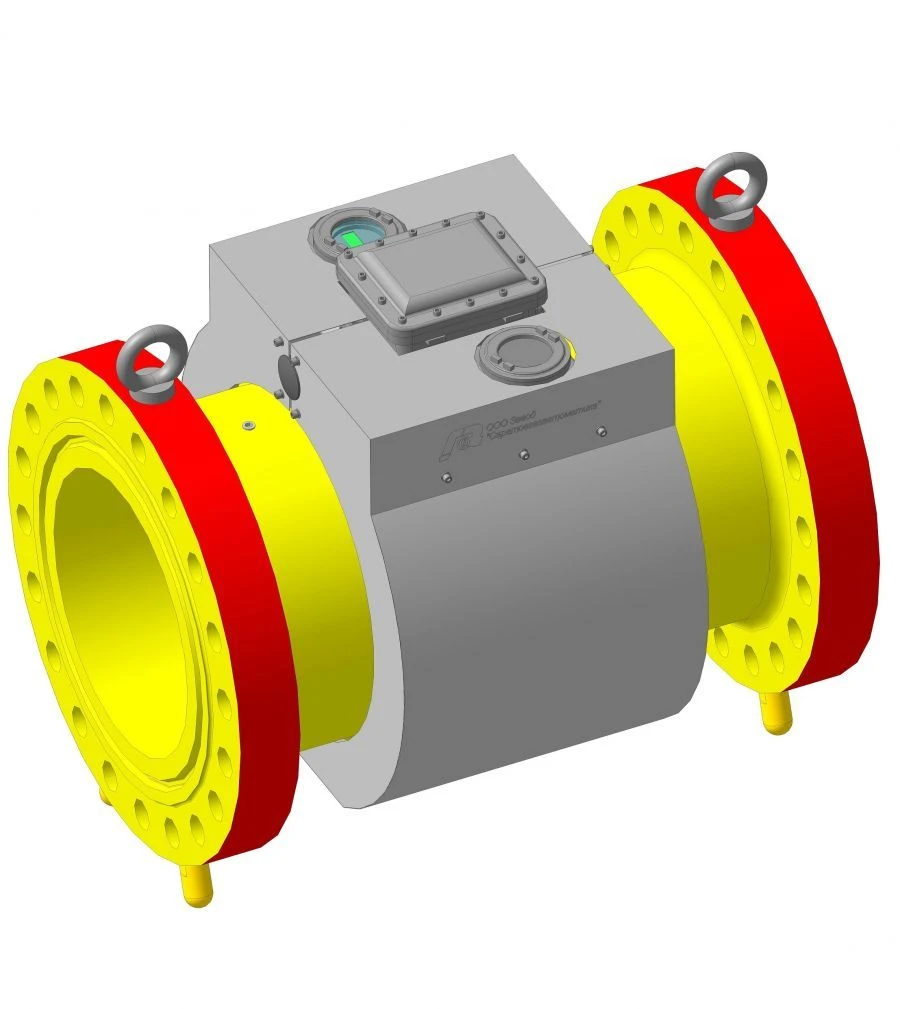

Ultrasonic gas flowmeters MPU C series

Flow Measurement Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

Gas flowmeters ultrasonic MPU series C are designed to measure the volume (mass) flow rate and volume (mass) of gas (including natural, associated (free) oil and air) under operating conditions and calculations of volume flow rate and volume of gas, reduced to standard conditions in accordance with GOST 30319.2-2015

Specifications

Mark C-series MPU

Working pressure 0...32 MPa

Application For measurements of volume (mass) flow rate and volume (mass) of gas (including natural, associated (free) oil and air) under operating conditions and calculations of volume flow rate and volume of gas reduced to standard conditions.

Nominal diameter SBVVBG mm

Measured flow rate range under operating conditions 1.77...138544

Measured flow velocity range 0.1...35

Tolerance limit of basic relative error of gas volume flow and volume measurement under operating conditions 0.3 %

Operating medium temperature -40...90 °C

Ambient air temperature -60...60 °C

Overpressure of the process medium 0...32 MPa

Limits of permissible absolute error when converting resistance to temperature value 0.15 °C

Limits of permissible error reduced to the measuring range when converting current into pressure/temperature value 0.1 %

Relative error limits for calculating volume flow and volume of gas reduced to standard conditions 0.01 %

Average MTBF 70000

Performances MPU200c, MPU600c, MPU800c, MPU1200c, MPU1600c

Name C series MPU ultrasonic gas flowmeters

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
