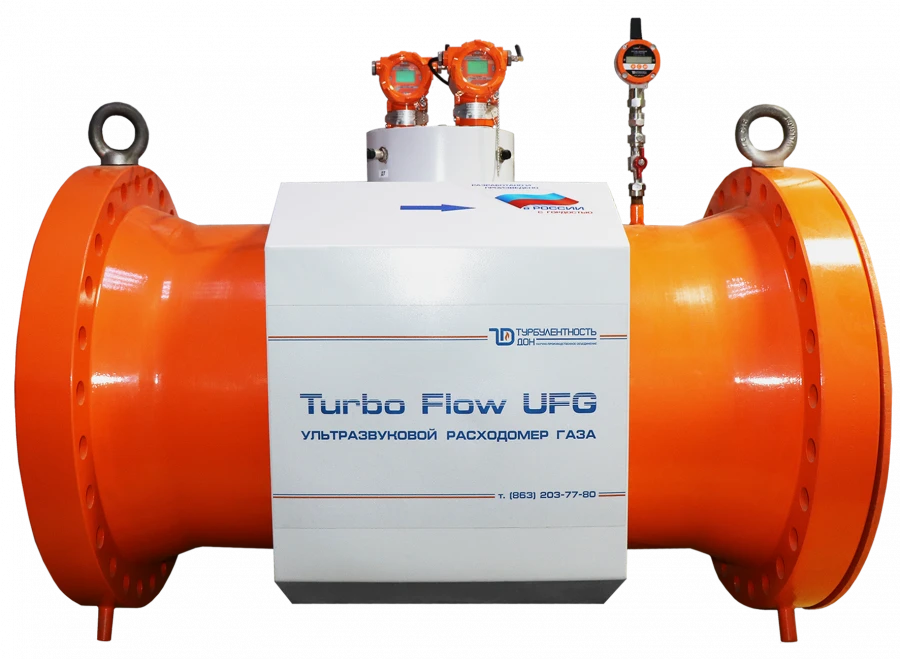

Ultrasonic flowmeters-counters Turbo Flow UFG

Flow Measurement Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Flow meters ultrasonic gas meters Turbo Flow UFG are designed to measure the volumetric flow rate and volume of gas under operating conditions and calculations of volumetric flow rate and volume of gas, reduced to standard conditions, as well as for calculations of mass flow rate and mass of gases, including natural and free oil. The flowmeters have versions A, B, C, D, D, which differ in the values of the permissible relative error, the number of pairs of transceivers and the variant of placement on the measuring pipeline. The flowmeter is equipped with combined frequency and pulse outputs (separately for forward flow and separately for reverse flow), current output 4 20mA, digital interface RS 485, wireless interface Bluetooth and GSM modem (optional).

Technical Specifications

Mark	Turbo Flow UFG
Application	Measurements of volumetric flow rate and volume of gas at operating conditions and calculation of volumetric flow rate and volume of gas reduced to standard conditions, as well as calculation of mass flow rate and mass of gases, including natural and free
Working pressure	1...25 MPa
Dynamic range, Qmin/Qmax	1:200
Nominal diameter DN	50, 65, 80, 100, 125, 150, 200, 250, 300, 350, 400, 450, 500, 600, 700, 800
Limits of permissible relative error of volumetric flow rate and gas volume measurements at operating conditions	A/A? (0.5/0.7? % - 0.3/0.5? %), B/W (0.5/0.7? % - 0.5/0.7? %), C/W? (1.0/1.2? % - 1.0/1.2? %), D/W? (2.0/2.2? % - 1.0/1.2? %)
Average MTBF, h, not less than	70000
Name	Ultrasonic gas flowmeters-counters
Weight, kg, not more:	12...5000 kg
Upper limit of absolute pressure measurement (UPI)	0.1...25 MPa
Measuring range of gas volumetric flow rate at operating conditions	1.4...50000

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
