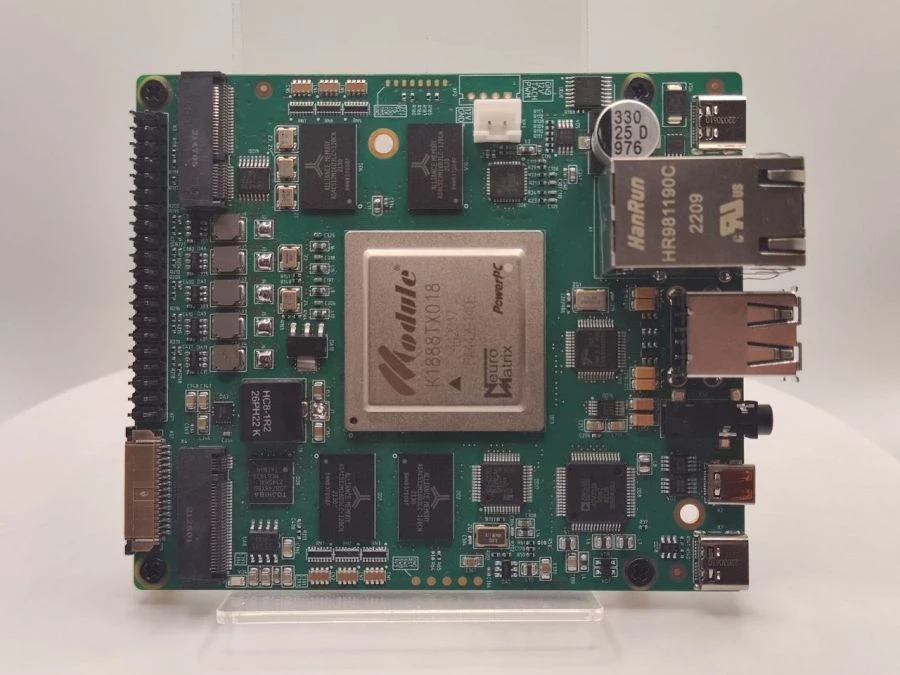

UKO Module STM.E.468332.003 - Single Board Computer

Available for Import

UKO Module STM.E.468332.003 - Reliable Single Board Computer for Computing Systems

Mounted Circuit Boards

Manufacturer: SMARTKOR OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The UCO module STME.468332.003 (hereinafter - UCO module) is a single-board computer designed for use in information-computing systems for various purposes as a computing module.The UCO module can be used, including in industrial and educational robotic complexes, allows you to create on its basis a wide range of devices for collecting, processing, transmission and visualisation of information.The UCO module can be used both as part of the equipment of information-computing systems, and as a separate unit of the UCO module.

Specifications

Average shelf life

3 year

Average service life

3 year

Average time to failure

10000

Packaging

1 pcs

Operating Instructions

1 pcs

Passport

1 pcs

System software

Fixing posts, screws

Aluminium radiator

1 pcs

USB memory stick with documentation

1 pcs

Flash microSD card with OS image

1 pcs

TypeC-TypeC Power Cable

1 pcs

USB Power Delivery 12V, 25W mains charger

1 pcs

UCO module STME.468332.003

1 pcs

Weight

Not more than 90 g, excluding installed devices, accessories from the delivery set, packaging

Overall dimensions

Not more than (105x85x32) mm, excluding cooling system

Cooling

Active (heat sink + fan)

Operating temperature range

0...70 °C

Typical power consumption

No more than 15 W

Input power supply

USB Type-C Power Delivery, 1 pc, 11.5 to 12.5V

Peripherals

PWM fan connection PWM, 2 pin, 1 pc.

Expansion connector for connecting NVME SSD or PCIe modules

M.2 key M (PCIe x4), 1 pc.

Expansion connector for connecting WiFi+Bluetooth combo modules

M.2 key E (USB 2.0 + PCIe x1), 1 pc.

Audio output

3,5mm TRS (mini-jack), 1 pc.

Video input

CSI, 15 pin FPC, 1 pc.

Video output

MicroHDMI, 1 pc.

Video codec

H.264, up to 1920x1080@30p

Network interface

Ethernet, 1 pc, 10/100 Mbps

Flash memory

MicroSD, 1 pc, up to 64GB

RAM

DDR3, 4GB

Hardware neural network accelerator

NeuroMatrix, 4 pcs.

CPU

PowerPC470S, 2 pcs, 800 MHz

Central VLSI

?1888??018, 1 pc.

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
