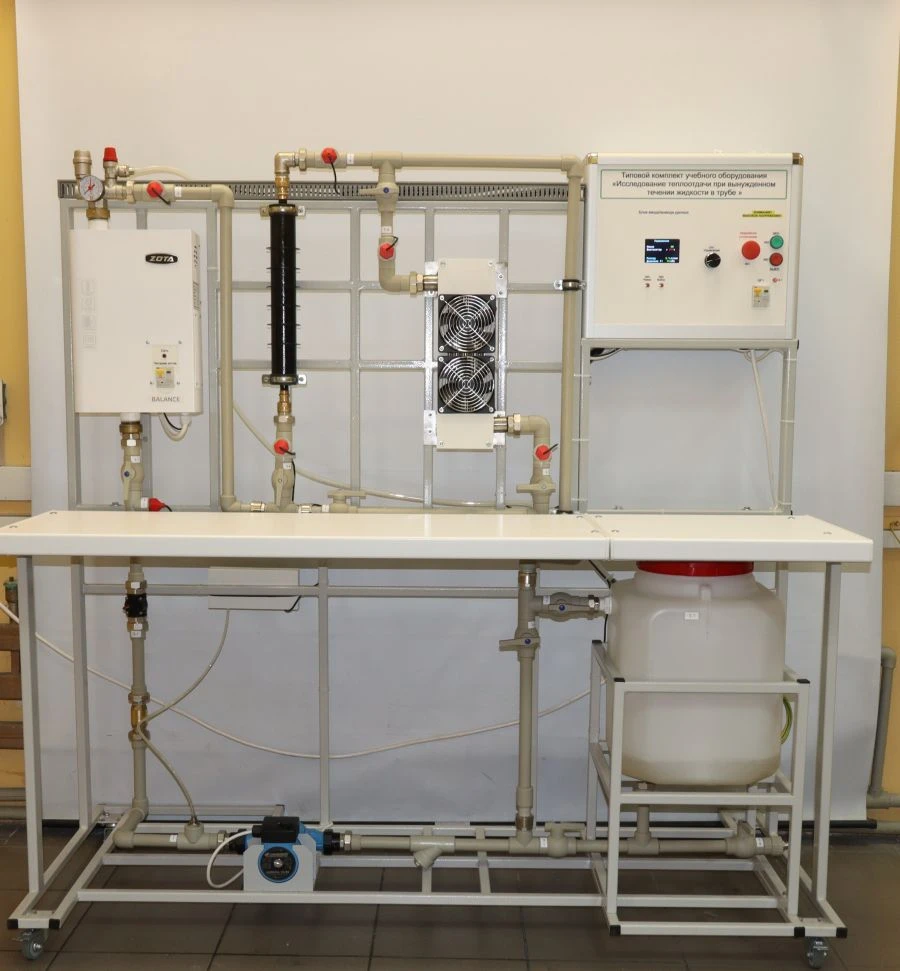

Typical set of training equipment "Study of heat transfer at forced flow of liquid in a pipe" ELB-171.026.02

Teaching laboratory installation "Study of heat transfer at forced flow of liquid in a pipe" is designed for laboratory work on the courses of study of disciplines "Technical thermodynamics and heat transfer" and "Thermal Engineering".
Technical characteristics.
Overall dimensions of the control unit: 1600x700x1600mm
Length - 1600 mm;
Width - 700 mm;
Height - 1600 mm.
Highest power consumption: 3.5 kW.
Power supply from single-phase AC mains:
Voltage 220V, frequency 50Hz.
Stand composition.
The stand is a frame base made of metal profile painted with powder paint. The base has swivelling wheel supports with brakes.
On the frame base is mounted the bench control unit as well as the hydraulic system with the investigated areas. The control unit made of metal profile with ABS plastic body, light colour with "shagreen" texture to ensure resistance to scratches, chips and other...
