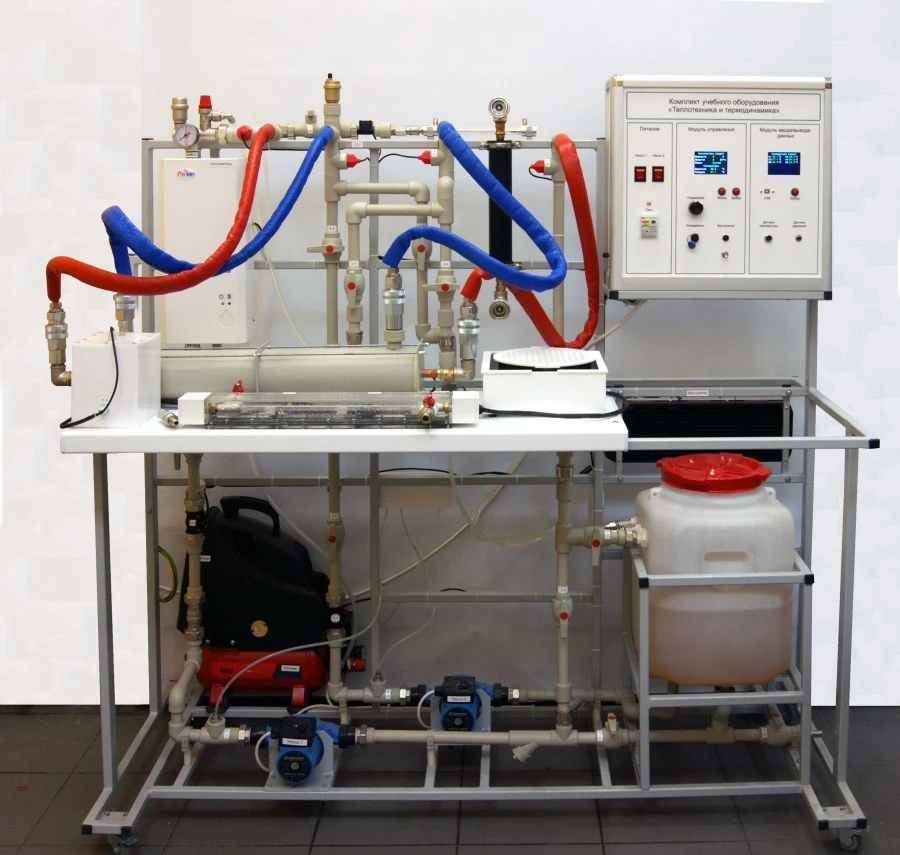

Typical set of training equipment "Heat engineering and thermodynamics" ELB-171.034.04

Type set of training equipment "Heat engineering and thermodynamics" is designed for laboratory works on the course "Heat engineering and thermodynamics" in secondary specialised and higher educational institutions.
Technical characteristics.
Overall dimensions of the stand:
Length - 1600 mm;
Width - 700 mm;
Height - 1700 mm.
Highest power consumption: 4 kW.
Power supply from single-phase AC mains:
Voltage 220V, frequency 50Hz.
Stand composition.
The stand is a frame base made of metal profile painted with powder paint. The base has swivelling wheel supports with brakes. The stand control unit, as well as hydraulic and pneumatic systems of the stand are mounted on the frame base.
The control unit made of metal profile with ABS plastic housing, light colour with texture "shagreen", to ensure resistance to scratches, chips and other damage possible during prolonged operation of the stand. B...
