Typical set of training equipment "Determination of heat transfer coefficient and heat capacity" ELB-171.032.02

The stand is designed for carrying out four laboratory works on the courses of study of heat engineering and heat engineering equipment. The complex is supplied with educational and methodical materials. Simultaneously works are carried out with a group of two or three trainees.
Technical characteristics.
Overall dimensions of the stand:
Length - 1600mm;
Width - 700 mm;
Height - 1600 mm.
Highest power consumption: 3.5 kW.
Power supply from AC mains:
Voltage 220V, frequency 50Hz.
Stand composition.

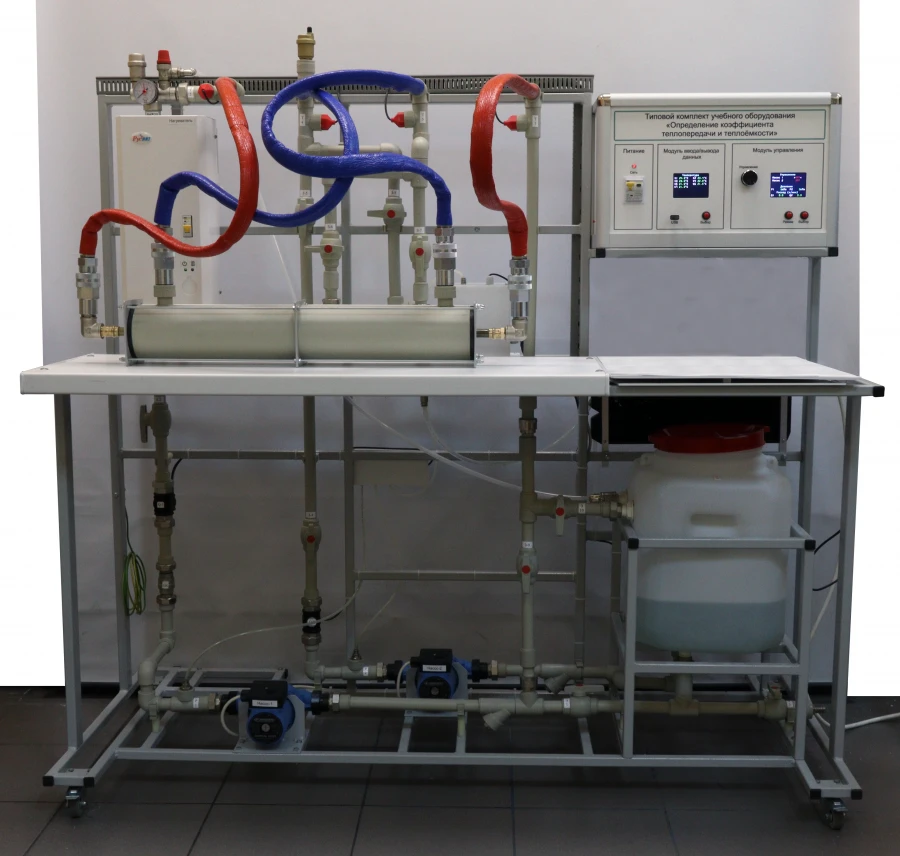

The stand is a frame base made of metal profile painted with powder paint. The base has swivelling wheel supports with brakes. On the frame base is mounted the bench control unit and hydraulic system consisting of pipelines and test sections. The control unit is made of a metal profile with a body made of ABS plastic, light colour with texture "shagreen", to ensure resistance to scratches, chips and other damage...
