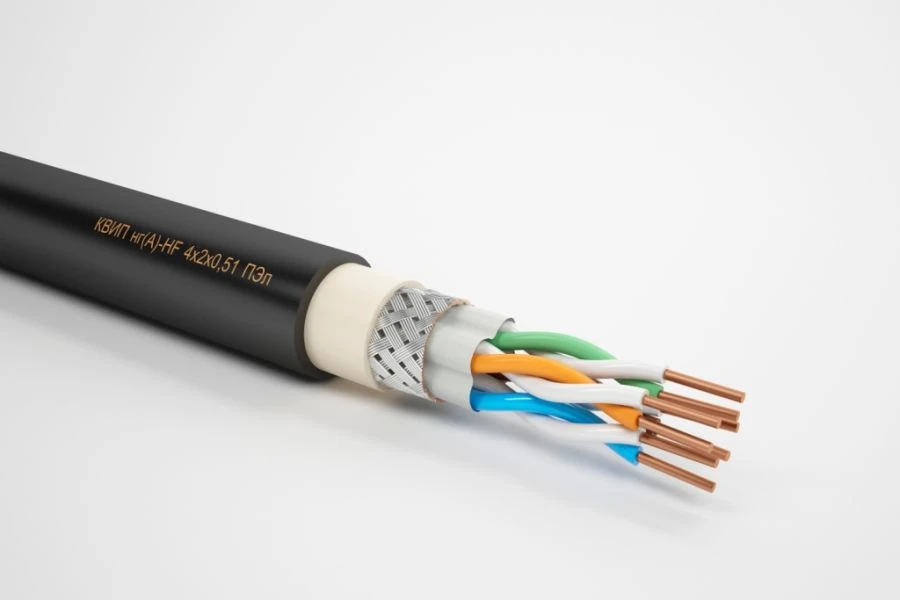

Twisted pair cable with tinned copper conductors, mark KVIP ng(A)-HF xx EPE

Available for Import

Twisted pair cable with tinned copper conductors, mark KVIP ng(A)-HF xx EPE

Installation Cables

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

Twisted pair cable with tinned copper conductors, mark KVIP xx VK Twisted pair cable with tinned copper conductors, mark KVIP xx V Twisted pair cable with tinned copper conductors, KVIP ng(A)-FR xx ? Twisted-pair cable with tinned copper conductors, mark KVIP ng(A) xx VK Twisted pair cable with tinned copper conductors, mark KVIP ng(A)-FR xx ETE

Twisted pair cable with tinned copper conductors, mark KVIP ng(A) xx EV Twisted pair cable with tinned copper conductors, mark KVIP ng(A)-FRLS xx VE Twisted pair cable with tinned copper conductors, mark KVIP ng(A)-HF xx EP Twisted pair cable with tinned copper conductors, mark KVIP xx EVE Twisted pair cable with tinned copper conductors, mark KVIP ng(A)-FRLS xx EVK Twisted pair cable with tinned copper conductors, mark KVIP ng(A)-HF xx PC Twisted pair cable with tinned copper conductors, mark KVIP ng(A)-HF xx PE Twisted pair cable with tinned copper conductors, KVIP ng(A)-FR xx TE grade Twisted pair cable with tinned copper conductors, mark KVIP xx EVK Twisted pair cable with tinned copper conductors, mark KVIP ng(A) xx T Twisted pair cable with tinned copper conductors, mark KVIP ng(A) xx ET Twisted pair cable with tinned copper conductors, mark KVIP ng(A) xx EVE Twisted pair cable with tinned copper conductors, mark KVIP ng(A)-HF xx P Twisted pair cable with tinned copper conductors, mark KVIP ng(A)LS xx EB Twisted pair cable with tinned copper conductors, mark KVIP ng(A)-LS xx EVEK Twisted pair cable with tinned copper conductors, mark KVIP xx EVEK Twisted pair cable with tinned copper conductors, mark KVIP ng(A)-LS xx VEK Twisted pair cable with tinned copper conductors, mark KVIP ng(A)-HF xx EPK Twisted pair cable with tinned copper conductors, mark KVIP ng(A)-FRHF xx EP Twisted pair cable with tinned copper conductors, mark KVIP ng(A)-FR xx ET Twisted pair cable with tinned copper conductors, mark KVIP xx EV Twisted pair cable with tinned copper conductors, mark KVIP ng(A)-FRHF xx PC Twisted pair cable with tinned copper conductors, mark KVIP ng(A)-FRLS xx EVEK Twisted pair cable with tinned copper conductors, mark KVIP ng(A)-FR xx TEK Twisted pair cable with tinned copper conductors, mark KVIP ng(A)-FRHF xx EPK Twisted pair cable with tinned copper conductors, mark KVIP ng(A)-FRLS xx EVE Twisted pair cable with tinned copper conductors, mark KVIP ng(A)-FRHF xx PE Twisted pair cable with tinned copper conductors, mark KVIP xx VE Twisted pair cable with tinned copper conductors, KVIP ng(A)-FR xx TK Twisted pair cable with tinned copper conductors, mark KVIP ng(A)-FRHF xx EPEK Twisted pair cable with tinned copper conductors, mark KVIP ng(A) xx VEK Twisted pair cable with tinned copper conductors, mark KVIP ng(A)-FRHF xx PEK Twisted pair cable with tinned copper conductors, mark KVIP ng(A)-FR xx ETK Twisted pair cable with tinned copper conductors, mark KVIP xx VEK Cable on the basis of twisted pair, with tinned copper conductors, mark KVIP ng(A)xx ? Twisted-pair cable with tinned copper conductors, mark KVIP ng(A) xx TE Twisted pair cable with tinned copper conductors, mark KVIP ng(A) xx ETEK Twisted pair cable with tinned copper conductors, mark KVIP ng(A)-HF xx EPEK Twisted pair cable with tinned copper conductors, mark KVIP ng(A) xx TEK Twisted pair cable with tinned copper conductors, mark KVIP ng(A)-HF xx PEK Twisted pair cable with tinned copper conductors, mark KVIP ng(A) xx TK Twisted-pair cable with tinned copper conductors, mark KVIP ng(A) xx VE Twisted pair cable with tinned copper conductors, mark KVIP ng(A)-LS xx VK Twisted pair cable with tinned copper conductors, KVIP ng(A)-LS xx VE grade Twisted pair cable with tinned copper conductors, mark KVIP ng(A)-LS xx B Twisted pair cable with tinned copper conductors, mark KVIP ng(A)-LS xx EVE Twisted pair cable with tinned copper conductors, mark KVIP ng(A) xx ETE Twisted pair cable with tinned copper conductors, KVIP ng(A)-FRHF xx EPE grade Twisted pair cable with tinned copper conductors, mark KVIP ng(A) xx EVK Twisted-pair cable with tinned copper conductors, KVIP ng(A)-FRLS xx B grade Twisted pair cable with tinned copper conductors, mark KVIP ng(A)-FRLS xx EV Twisted pair cable with tinned copper conductors, mark KVIP ng(A)-FRLS xx VEK Twisted pair cable with tinned copper conductors, mark KVIP ng(A)-FRLS xx VK Twisted pair cable with tinned copper conductors, mark KVIP ng(A) xx ETK Twisted pair cable with tinned copper conductors, mark KVIP ng(A) xx EVEK

Description

Cables of pair twisting, with tinned copper multi-conductor cores with nominal cross-section from 0,12 to 1,5 mm² or tinned copper single-conductor cores with nominal diameter from 0,40 to 0,80 mm, with insulation from cross-linked polyolefin, including not spreading combustion, with number of pairs from 1 to 44, for nominal alternating voltage up to 690 V with frequency 50 or 60 Hz or direct voltage up to 1000 V

Specifications

Fire hazard class P1b.8.1.2.1.

Core material copper or tinned copper

Insulation material crosslinked polyolefin

Sheath material Halogen-free polymer compositions

Nominal core cross-section 0,40-1,5 mm

Number of pairs 1...44 pc

Design feature No reservations.

Gasket type cables can be laid in rooms, channels, tunnels, earth (trenches), including places exposed to stray currents, in explosive zones of classes 0, 1, 2, 20, 21, 22, can be laid in the open air.

Screen type with shielded pairs and in a common shield
