Available for Import

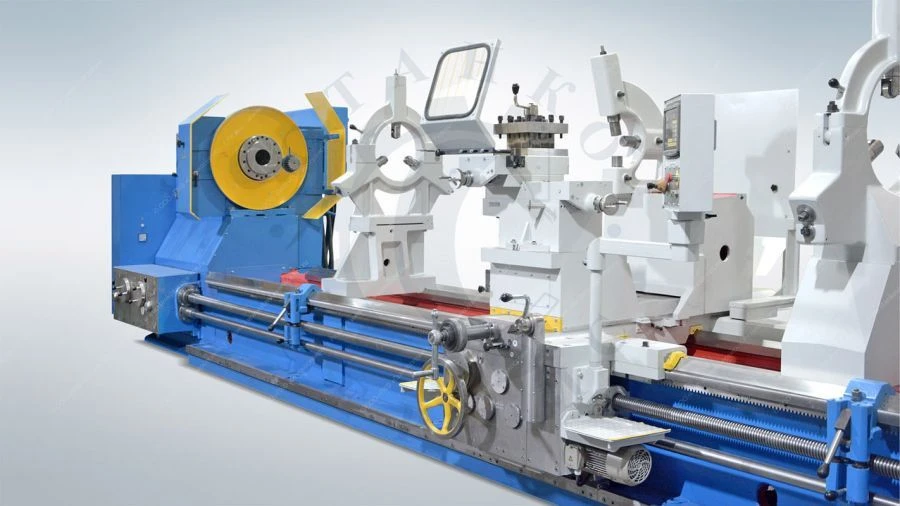

Turning and screw-cutting machine tool RT317F1-8

Manual Metal Lathes

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

The machine is designed for all turning operations, including taper turning and thread cutting - metric, modular, inch

Technical Specifications

Type of product according to PP RF 616	Universal lathes and screw-cutting machines, with CNC, CNC)
Type of product according to PP RF 616	Turning and screw-cutting machines (universal, with CNC, CNC)
Height	2250 mm
Width	2355 mm
Length	11220 mm
Step limits for machinable inch threads	24-1/4 threads per 1 inch
Step limits for machinable metric threads	1...96 mm
Maximum lateral movement of the slide	850 mm
Diameter of the cylindrical bore in the spindle	128 mm
Spindle speed limits	5...500
Longest workpiece length	8000 mm
Largest diameter of the workpiece to be mounted above the bed	1700 mm
Largest diameter of the workpiece to be machined above the bed	1300 mm
Largest diameter of the workpiece to be mounted and machined above the slide	1300 mm
Roughness of the cylindrical surface of the sample product after its finish machining	Ra 2.5 µm
Accuracy class of machine tools according to GOST 8-82	?
Machine weight	25250 kg
Height of the tool to be mounted	SBVVBG mm
Main motion drive power	30 kW
Highest cutting force Pz	41000
Highest torque on the spindle	9.5 kNm
Speed of rapid transverse movements of the slide	1000 mm/min
Speed of rapid longitudinal movements of the caliper	3000 mm/min
Step limits for machinable modular threads	0.5-24 module
Digital Display Unit (DDU)	Installed
Maximum longitudinal movement of the slide	7650

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
