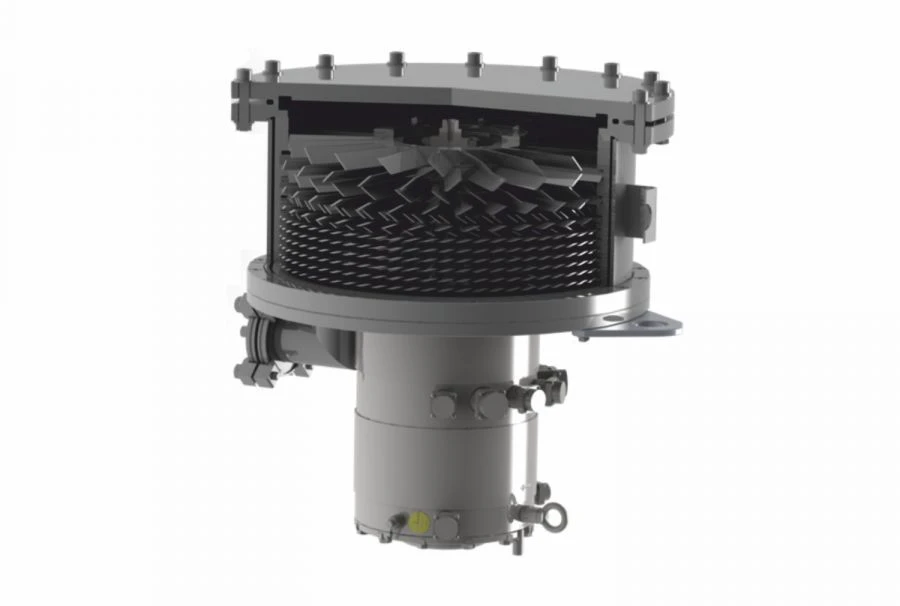

Turbomolecular vacuum pump NVT-400

Specialised Vacuum Pumps

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Turbomolecular vacuum pump NVT-400 with active magnetic suspension of the rotor operates in the range of 50 Pa (3,8 x 10 -1 mm. Hg) to 6 x10 -6 Pa (4,8 x 10 -8 mm. Hg). Air velocity: 3200 l/s. Thanks to the electric drive with active magnetic suspension of the rotor, the pump is completely oil-free and easy to operate. Turbomolecular vacuum pumps are widely used in all high and ultra-high vacuum applications.

Technical Specifications

Quickness of action on air at working pressure 1x10 -2 Pa, l/sec	3200 l/s
Compression ratio	10 6
Ultimate residual pressure, Pa, not more than	6,0?10 -6
Highest starting pressure at the pump outlet, Pa, max.	5,0?10 1
Rated speed, rpm	16000 ± 160
Orientation in space	any
Input flange	ISO-F 400
Output flange	ISO-K 63
Rotor acceleration time, min, not more	17
Rotor run-out time, min, not more	20
Cooling type	water
Cooling input and output port	G 1/8”
Cooling water temperature, °?	+5...+25 °C
Cooling water flow rate at a cooling inlet port pressure of 0.05 to 0.40 MPa (0.5 to 4.0 bar) and a temperature of max.	0.06
Pump dimensions, mm, max.	610 x 530 x 560 mm
Dimensions of the control unit, mm, not more	560 x 465 x 415 mm
Weight, kg, not more	210 kg
Weight of control unit, kg, not more	Built-in memory card slot, support microSD/SDHC/SDXC card (up to 256GB); manual recording/alarm recording kg
Power supply	220 ± 22V, 50 ± 1G
Power consumption, kW, not more	1.9 kW
Sealing rate, m3?Pa/s, not more	5,0?10 -7

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
