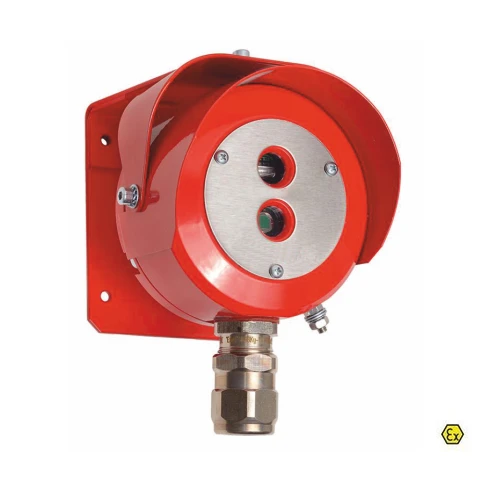

Tulip 64/2 Ex-R3 Addressable Analog Flame Detector

Available for Import

Tulip 64/2 Ex-R3 Flame Detector for Effective Fire Detection in Hazardous Areas

Fire Alarm Detectors

Manufacturer:POLISERVICE LLC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The detector in explosion-proof version TULPAN 64/2 Ex-R3 is designed to detect the hearth of an open natural flame and the formation of fire notification when working in explosive mixtures of gases or vapours with air. The detector is not intended for operation in underground workings of mines, mines and their above-ground structures, dangerous by mine gas and/or combustible dust. Standard designation according to GOST R 53325 - ??

329/330-64/30-1. Class of the detector according to GOST R 53325 - 1. Area of application - explosion hazardous areas of classes 1 and 2.

The detector is designed to work with devices PPKOPU "R3-Rubezh-2OP", PPKOPU 011249-2-1 "Rubezh-2OP" prot.R3 and controllers addressable devices "R3-Rubezh-KAU2", "Rubezh-KAU2" prot.R3. Structurally, the detector is made in the form of an aluminium housing with a canopy.

Specifications

Type of communication line with child devices

address line

Operating temperature range

-55...55 °C

Explosion protection marking

1Ex d IIC T5 Gb X

Housing material

Aluminum

Degree of protection

Low

Power supply voltage

24...36 V

Degree of protection of the shell, IP

Weight

1.2 kg

Average service life

10 year

Maximum spectral sensitivity of IR channel, µm

4,3

Spectral sensitivity range of UV channel, nm

185-260

Assignment

Class 1 and 2 explosive hazardous areas

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
