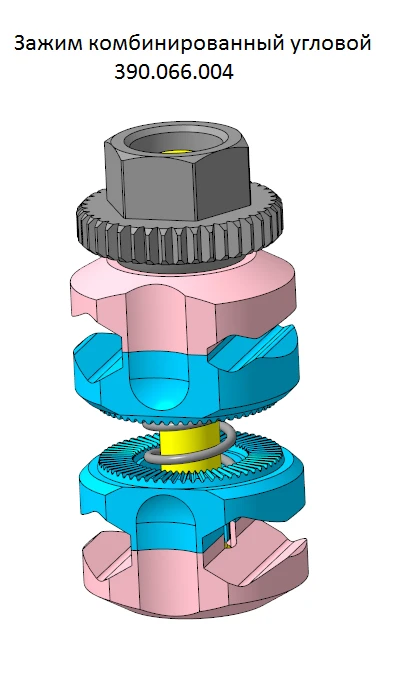

Tube-to-tube angle combination clamp, article no. 390.066.004

Implant for stable functional osteosynthesis. It is made of titanium alloy. It consists of 2 branches with 2-sided open-type clamps. Non-disassembling, provides one-stage 4-point fixation of supporting tubes and Schanz rod and their mutual movement in the range of 360 degrees in 6 degrees increments. All clamping and fixation units are spring-loaded, the hexagonal locking nut has a stroke limiter and will not fall out. On the lower and upper branche, on both sides, there are spoon-shaped recesses. The inner spoons for the carrier tubes have an anti-slip coating. For 4 mm tubes. For 4 mm rods and 2.5 mm spokes. Spring-loaded, self-retaining. Laser marking of the diameter of the components to be clamped. MRI compatible Sterilisation required.
