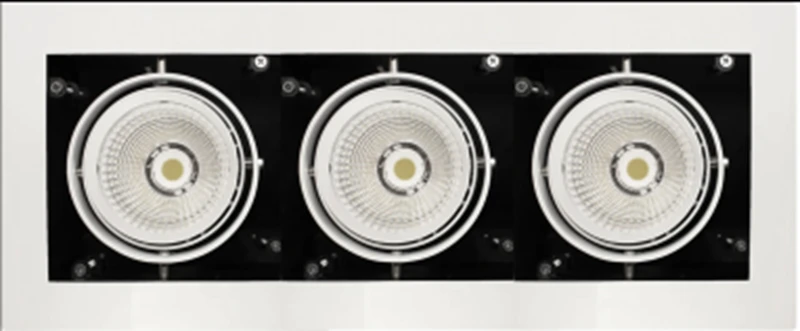

TS-S-K03 series LED luminaires

They are used for lighting of museums, galleries, shopping malls, hypermarkets, shops, residential and office premises. Consist of aluminium housing with heat sink, LED matrix, driver, optical system.
Input voltage, V 85-265
Current frequency, Hz 50 ... 60
Power factor>0.98
Energy efficiency of the luminaire> 85%
LED operating voltage, V36 ... 42
Power consumption of the luminaire, W 60-150
Luminous flux, Lm 7200-18000
Colour temperature, K 3000-6000
Colour rendering, CRI from 80 to 97
Diffusion angles, degrees 15,24,38,60
Protection classIP20
Operating temperature, °? (10)-55
Service life, hours more than 50 000
