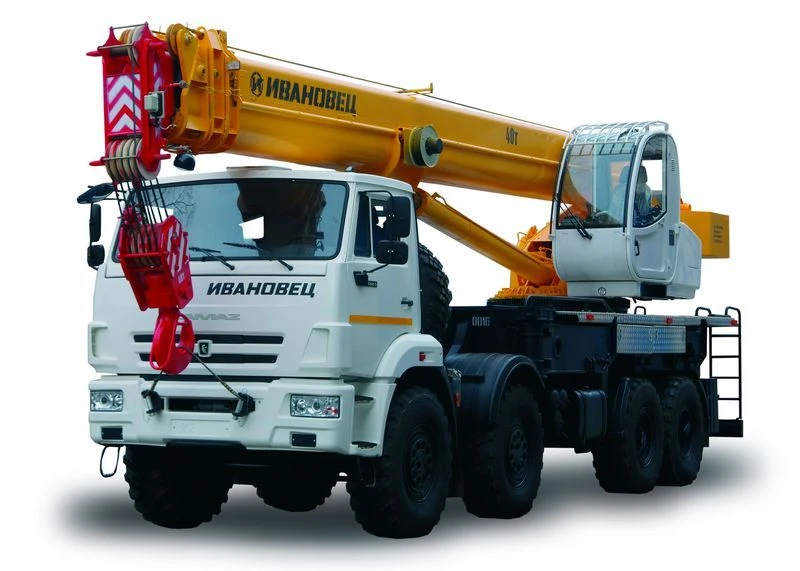

Truck crane KS-65740-7 and its modifications with the use of cabin U2.60.52.000 and its modifications produced by "IMZ AUTO" Ltd

A mobile crane KS-65740-7 is designed for construction and assembly and handling operations with conventional cargoes on dispersed sites.
Base chassis - KAMAZ-63501 of ecological class 5
Maximum lifting capacity - 40 tonnes
Crane mechanisms drive - hydraulic with a possibility to combine working operations
Boom - telescopic four-section boom. The boom is telescoped by hydraulic cylinders and a system of chain hoists. In order to increase the boom length and under boom space, it is possible to equip the boom with a 9.0 m long gooseneck installed parallel to the main boom or at an angle of 30 degrees.
Control of outriggers - by means of remote control panel
Control of crane operations - electro-proportional system
Limitation of load capacity and recording of crane operation parameters - by means of microprocessor load capacity limiter with digital indication of information and built-in parameter recorder.
It is possible to install additional...
