Truck crane KS-45717K-3-54 and its modifications with the use of cabin U7810.5 and its modifications manufactured by "IMZ AVTOKR

Mobile Truck Cranes

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

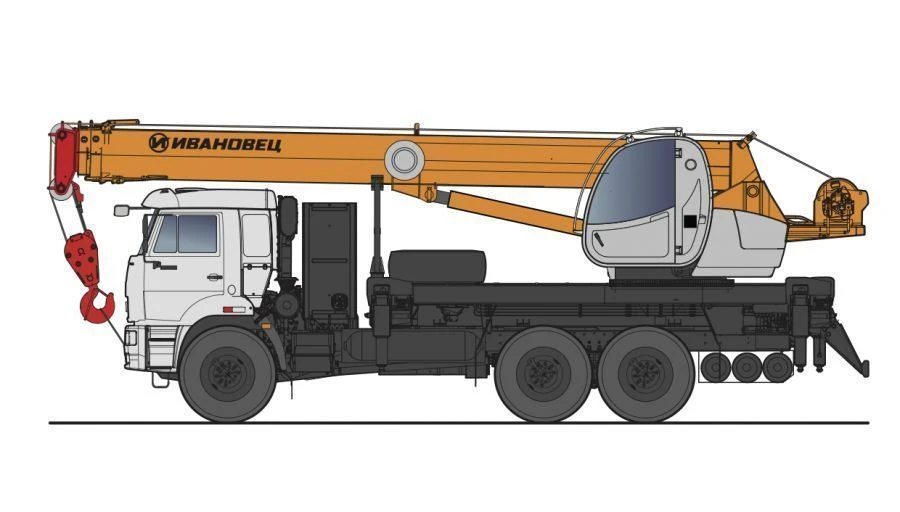

A truck crane KS-45717K-3-54 is designed for construction and installation, loading and unloading work with ordinary and dangerous goods at dispersed sites.
The base chassis is KAMAZ-43118 of environmental class 5, which uses compressed natural gas (compressed methane) as fuel. The system of cylinders placed on the crane allows filling 1120 litres of gas fuel. This allows the crane to travel a distance of more than 500 kilometres or 24 hours of continuous operation.
The maximum lifting capacity is 25 tonnes
The crane is equipped with a reliable winch with 1Ts2U spur gearbox.
The boom is an ovoid, telescopic three-section boom with a length of 21 metres. In order to increase the length of the boom and podstrelovogo space is possible optional gooseneck length of 9.0 m, installed when working parallel to the main boom or at an angle of 30 degrees.

Technical Specifications

Type of product according to PP RF 616	Truck cranes
Type of product according to PP RF 616	Truck cranes
Crane mechanism drive	Hydraulic
Base chassis	KAMAZ-43118
Climatic version	1
Maximum payload	25 t
Availability of heater	Armoured glass
Availability of air conditioning system	no
ROPS operator protection device	no
Availability of FOPS operator protection device	no
Boom length	21 m
Base machine type	Self-propelled machine
Type of undercarriage	Wheeled
Engine type	Gas
Wheel arrangement	8?8
Rated load capacity	25 t
Rated motor power (her)	200...300 hp
Gooseneck length	17 m
Telescopic boom	Armoured glass
Arrow	10-24

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
