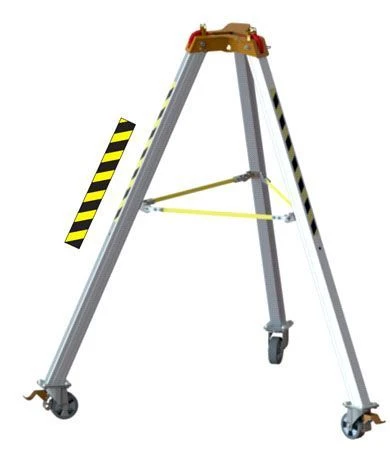

Tripod Anchor Device Type B for Height Safety and Rescue Applications

The tripod is an anchoring device of type B and is a component of the safety system for work at height, as well as a component of the rescue and evacuation system when used in conjunction with rescue lifting devices - winches. It is designed for work of users in confined spaces (tanks, cisterns, wells, bunkers, reservoirs, wells, etc.). -Maximum number of users - 2 -Maximum design load (maximum user weight, including the weight of tools and equipment): 250kg.

-Working height: 169 cm. -Working surface diameter: 140 cm. -Weight: 34kg.

-Dimensions: 2004747 cm. -Number of anchor points: 5. -Head part - galvanised painted steel.

-The head part has two block rollers with fixing pins for the rope of the rescue lifting device. -The tripod is equipped with an automatic locking position of the supports preventing accidental tipping of the tripod during the s....
