Available for Import

Traverse beam type 2-16,0-4000

Material Handling Equipment

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

Traverse beam type 2-5,0-1000 Traverse beam type 2-16,0-6000 Traverse beam type 2-6,0-8000 Traverse beam type 2-0,63-8000 Traverse beam type 2-16,0-1000

Traverse beam type 2-16,0-3000 Traverse beam type 2-8,0-8000 Traverse beam type 2-6,0-5000 Traverse beam type 2-1,0-1000 Traverse beam type 2-6,0-1000 Traverse beam type 2-6,0-10000 Traverse beam type 2-8,0-1000 Traverse beam type 2-1,0-10000 Traverse beam type 2-5,0-3000 Traverse beam type 2-12,5-1000 Traverse beam type 2-12,5-3000

Description

"Lifting beams are necessary to distribute the load evenly between all load attachments, they protect the lifted load from compressive forces and ensure its safety when moving.

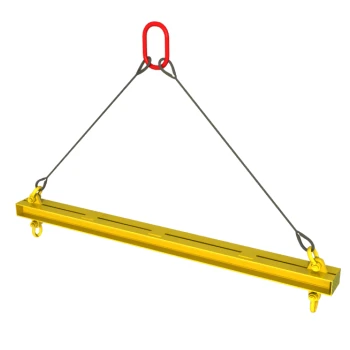

The traverse beam is a beam structure with two lugs on the edges of the beam for attaching the traverse beam to the hoist. Since the crosshead is attached to the hook by means of slings, this reduces the useful working height, therefore we recommend the use of the Type 1 crosshead in conditions of height restrictions.

At the same time, the scheme of slinging the traverse by two points allows to significantly reduce the metal intensity of the structure, which is important when selecting a traverse with a minimum dead weight while maintaining the load capacity.".

Specifications

Payload 16 t

Crosshead length 4 m

Diameter of the top eyelet bore 37 mm

Diameter of the bottom eyelet bore 30 mm

Product weight 184 kg

Designation ??002-16,0-4000

Manufacturer's item 30200049201
