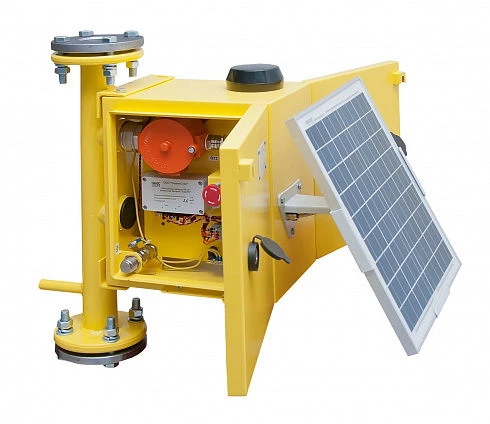

Transition gassing control system SKZP-A-VS Du50-Du200 Solar

Gas and Smoke Analysers

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

SKZP is designed for autonomous issuance of emergency warning signalling about gas pipeline condition (possible gas leaks into gas pipeline protective cases) in places where the gas pipeline approaches or crosses a railway or motorway. Data transmission is carried out via wireless cellular communication channels of GSM 900/1800 standard. Functional capabilities: automatic control of gassiness in the places of convergence (crossing) of the gas pipeline with the railway; signalling of the system cabinet door position; automatic issuing of emergency warning alarms about the gas pipeline condition and possible gas leaks to the operating organisation and railway station duty officers; access control to the equipment; autonomous operation mode. The system, depending on the modification, is designed for installation on the exhaust candle with a nominal passage from Du50 to Du200.

Specifications

Type of gas analyzer Stationary

Availability of gas analyzer sensor Built-in

Type of gas analyzer Stationary

Supply voltage, max. 3.6, ?

Degree of dust and moisture protection IP54

Explosion protection marking 2 Ex ic IIB T3 Gc

Type of explosion protection Intrinsically safe electrical circuit

Modification Du200 58, kg.

Modification Du150 48, kg.

Modification Du125 43, kg.

Modification Du100 39, kg

Modification Du80 36, kg.

Modification Du50 32, kg.

Modification Du125 875x555x310, mm

Modification Du200 963 x 555 x 355, mm.

Modification Du150 900 x 555 x 330, mm.

Modification Du100 825 x 555 x 296, mm

Modification Du80 800 x 555 x 290, mm.

Modification Du50 790 x 555 x 365, mm.

Diameter of the nominal bore of the exhaust candle 50 to 200, mm.

Operating temperature range From -40 to +60, ?

Wireless communication standard GSM 900/1800

Current consumption in power saving mode 8, mA

Average maximum current consumption in data transfer mode 370, mA

Power consumption 1, W

Type of power supply Self-contained (battery)

Battery recharging solar module

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
