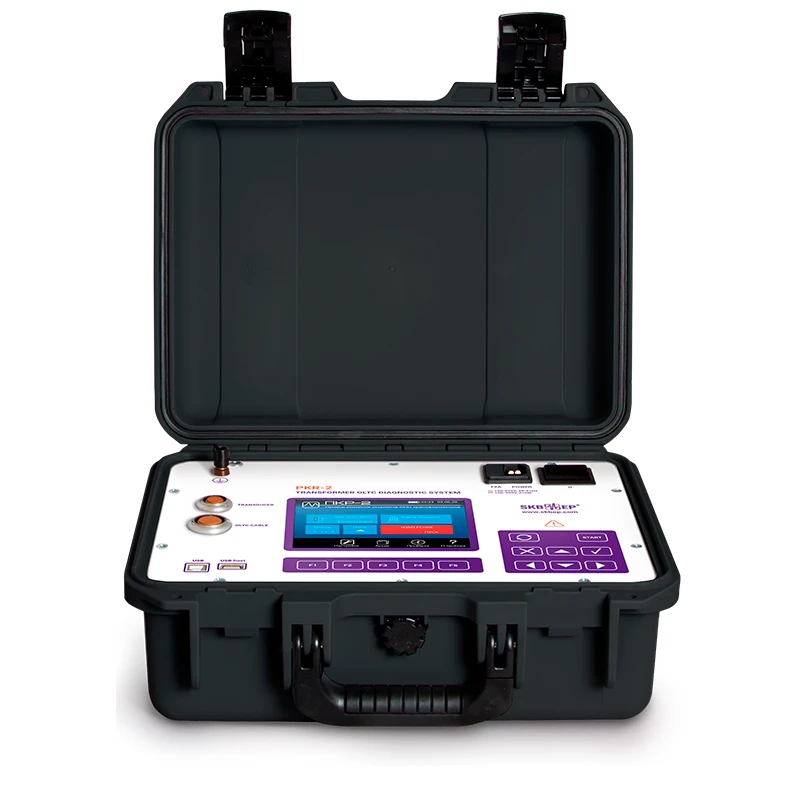

Transformer on-load tap-changer control device PKR-2M

Combined Electrical Recorders

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

Transformer on-load tap-changer control device PKR-2 Transformer on-load tap-changer monitoring devices PKR-2 and its modification PKR-2M

Description

The software and hardware complex is designed to check the technical condition of on-load tap-changers of reactor and resistor type.
They carry out oscillography and removal of pie charts simultaneously on three phases.
The measurement results are stored in the non-volatile memory of the devices, on an external Flash-drive, and can also be transferred to a computer.
The device is equipped with a large colour touch screen display, built-in rechargeable battery for autonomous operation.
On-load tap-changer test mode: disassembled, non-disassembled (DRM method).

Specifications

Inspection period 3 a

Temperature range when operating the device -20 °C to +40 °C °C

Environmental protection in working position IP 20

Environmental protection in transport position IP 64

Weight 6.1 kg

PC communication USB and USB host

Maximum recording time of the pie chart 20

Resistance measurement sampling frequency per channel 10 ±0.1 kHz

Accuracy ±0,56°

Angular displacement measuring range 2° ÷ 360°

Resolution ±0.1 ms

Measuring range of time intervals 0,01 ÷ 1200 ?

Operation time with built-in battery 2 ÷ 8 ?

Power supply (built-in battery) Lithium-ion

Maximum time of oscillogram registration by DRM method 20

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
