Tram car of model 71-409

Passenger Tram Cars

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

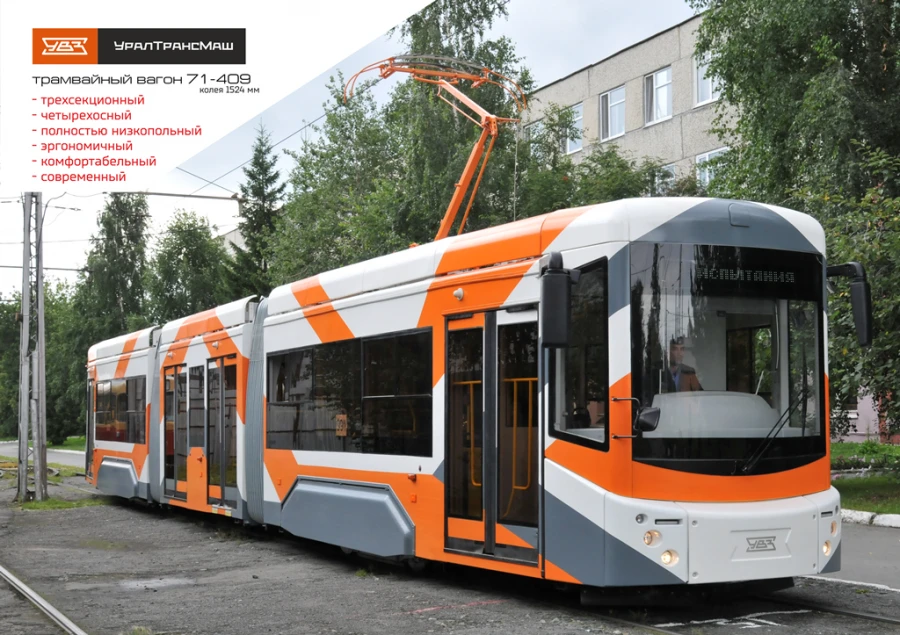

Tramway model 71-409 is a three-section articulated car with low floor level on the whole area of the saloon.

Technical Specifications

Type of product according to PP RF 616	Self-propelled (motorized) streetcar passenger cars
Type of product according to PP RF 616	Self-propelled (motorized) streetcar passenger cars
Model	71-409
Track	1524 mm
Length	21900 mm
Width	2500 mm
Wheel diameter	706 mm
Height	2800 mm
Cart base	1900 mm
Base	11500 mm
Full capacity	205
Nominal capacity	143
Height and width of doors designed for wheelchair accessibility	1400x900 mm
Number of seats	1
Passenger area lighting	LED
Heating of the driver's cab	Air from heater
Full capacity	205
Wheelchair seating device	ramp
Specialised wheelchair area, MM	800x1350
Cabin heating	electric heaters
Maximum capacity	205
Body length	21900 mm
Body width	2500 mm
Car body height, not more than	2800 mm
Weight of empty car, not more	26 t
Number of double doors	4 pc
Width of doorways	1300 mm
Rated contact line voltage	550 V
Rated voltage of the on-board low-voltage network	24 V
Rated power of traction motors (8 pcs.)	30 kW
Maximum total power of traction motors	376 kW
Maximum speed	75
Acceleration time to 40 km/h	B1/B8 2100/900 MHz
Floor height from rail head level	370 mm
Resource until the first overhaul	500000
Wagon service life by limit state of body and bogie frame, not less than	20 a

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
