Training kit for development of autonomous mobile robots based on AR-TB3 platform

Educational Demo Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

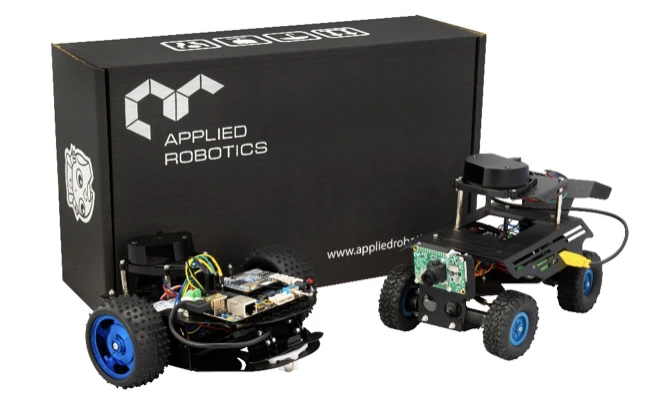

The training kit for studying autonomous mobile robots is a set for developing models of mobile robots with different kinematics - two-wheeled chassis with differential kinematics, chassis with steering kinematics of automotive type, four-wheeled chassis of omnidirectional movement. The kit includes information systems and devices for developing the control system of the mobile robot - programmable controller with integrated microcomputer, vision module, stereo vision module, laser scanning rangefinder, inertial system, software for indoor navigation. The control system of the mobile robot allows analysing the environment during the movement of the mobile robot, forming a map of the local environment around the robot and building a global map of the surrounding space.

Technical Specifications

Mobile robot	1 pc
Drive of drive wheels	2 pc
Лазерный сканирующий дальномер	1 pc
Measuring range (Laser scanning rangefinder)	120...3200 mm
Linear measurement error (Laser scanning range finder)	5 %
Scanning Sector (Laser Scanning Rangefinder)	360
Infrared sensor array	1 pc
Number of built-in IR sensors (Infrared Sensor Array)	7 pc
Line sensor module	3 pc
Position sensor module	1 pc
Color sensor module	1 pc
Programmable controller	1 pc
Battery pack	1 pc
Training manual in Russian	1 pc
Equipment	Battery pack, Laser scanning rangefinder, Vision module, Stereo vision module, Drive wheel drive, Programmable module with integrated algorithmic software
Interfaces	Bluetooth, I2C, MicroSD, PWM, SPI, TTL, WiFi, For Microphone Connection
Communication with similar modules via busbar	Compliance
Availability of embedded software	Compliance
Number of wheels	2 pc
Number of built-in vision modules	2 pc
Number of processor cores	4 pc
Number of different objects detected simultaneously in the module's field of view	10 pc

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
