Available for Import

Trailer chassis model PH-36 modification PH-36P

Trailer Axle Components

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

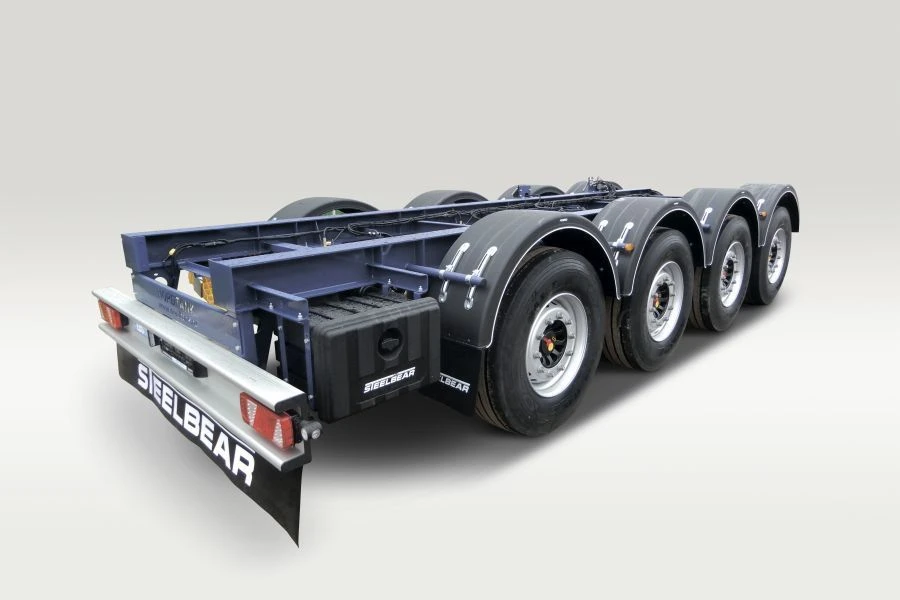

The trailer chassis is made of two longitudinal members of I-beam section, connected by cross beams (for difficult road conditions). The frame structure is made of high-strength steel working in the temperature range from -70 0C to +80 0C; Supporting device with a load capacity of 24 tonnes with control on the right side; 2-inch kingpin in accordance with UNECE Regulation No. 55.00, located in accordance with ISO 1726; Rear ALUMINIUM protective device with integrated number plate mounting,
in accordance with UNECE Regulation No. 58.01, with full-width mudguard; Reinforced air suspension (350 mm diameter cushions) with lifting/lowering capability; Preparation of steel surfaces by shot blasting to Sa 2 ½; Painting of the chassis with a two-component ACRYL system used for the painting of
products in the automotive industry with preliminary application of two-component anticorrosive zinc-containing primer protecting the frame from "under-layer" corrosion.

Technical Specifications

Unladen weight	3500...15000 kg
Length	8000...18500 mm
Width	2480...3500 mm
Height	890...1850 mm
Wheel track	1800...2250 mm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.

Shipping & Payment Information

Shipping Terms

FOB: Novorossiysk, Russia
CIF: Available to major ports worldwide
EXW: Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination)
Air freight: 14-21 days (for urgent orders)
Production lead time: 30-90 days (depending on order size)

Payment Methods

Letter of Credit (L/C)
Wire Transfer (T/T)
Escrow Services

Order Minimums

We work with orders starting from 1 container
You can mix different products in one container
Volume discounts available for larger orders

Customs & Documentation Support

We provide comprehensive assistance with all export documentation, customs clearance, and logistics arrangements. Our team has extensive experience facilitating international trade with businesses in Africa, Middle East, Asia, and Latin America.
