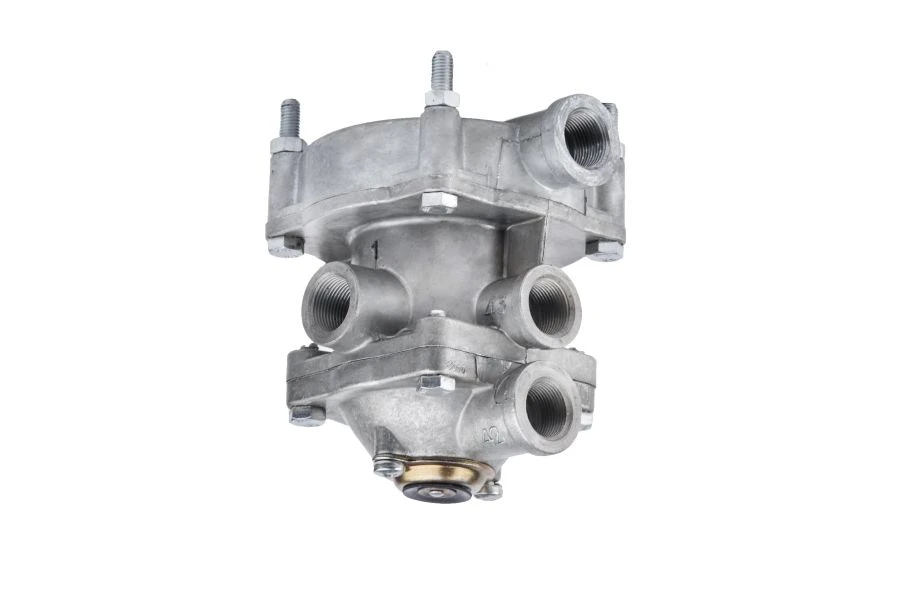

Available for ImportTrailer Brake Control Valve with Two-Wire Drive for Efficient Control
Manufacturer:ROSSLAVL BRAKE SYSTEMS LLC
Price:Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Available Models
Description
Trailer brake control valve with two-wire actuator is designed for controlling two-wire actuator of trailer brakes in case of separate actuation of tractor working brakes and presence of reverse acting brakes in the form of cylinders with spring energy accumulators. In the supply lead 1 and lead 2 to the brake line of the trailer is installed a protective mesh, preventing the ingress of foreign bodies, etc. from the pneumatic system of the motor vehicle into the internal cavities of the device.
Specifications
Equipment
Trailer brake control valve - 1 pc. Transport plug - 5 pcs. Passport - 1 piece (when products are delivered in batches - in each transportation package (box, crate, etc.)). Packaging - 1 pc.
Pressure at pin 2 when pin 41 is pressurized with 0.2 MPa (advance)
0.25...0.27 MPa
Connection thread size
22 mm
Disposal information
The procedure for disposal of the product shall be determined by the Consumer.
Manufacturer's warranty
The company guarantees the compliance of the device with the requirements of GOST R 52848-2007 under the conditions of operation, transportation and storage.
Storage conditions
The apparatus shall be stored in a container or on a rack under the condition of storage L according to GOST 15150-69 within six months from the date of shipment to the customer
Weight
1.65 kg
Temperature range
-46...80 °C
Working pressure
0.8 MPa
Installation of the apparatus
In accordance with the vehicle manufacturer's documentation
Maintenance of the machine
In accordance with the operating manual of the motor vehicle for which it is intended
Environment
Air, possible exposure to condensate, water, dust, dirt, engine oils, fuel vapors, brake fluids, detergents, road de-icing agents.
Operating medium
Compressed air, oil and water vapors may be present.
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
