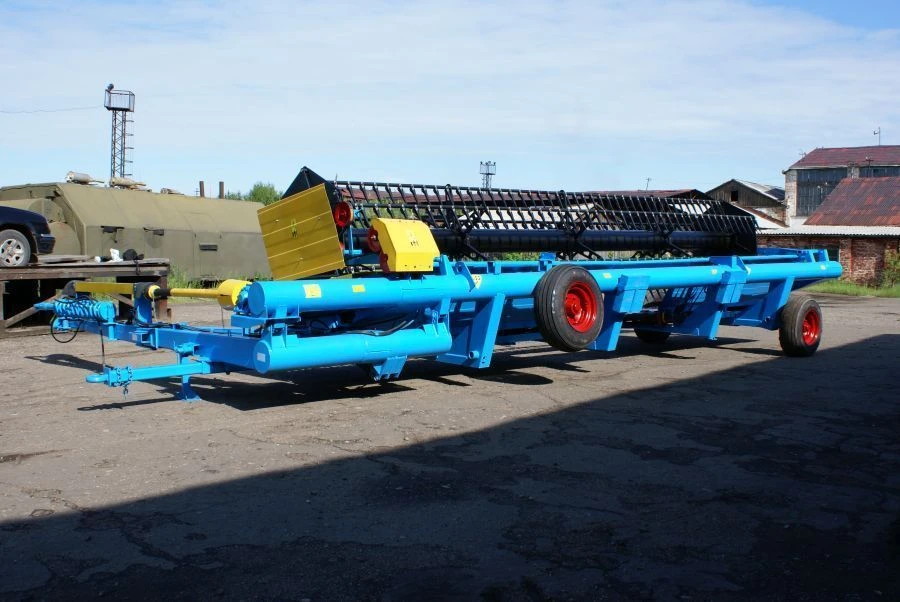

Trailed swath cutterbar ZhVP-9,1

Crop Harvesting Machines

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

Trailed swath cutterbar ZhVP-7,1

Wide-capture swath cutterbars ZhVP-9, 1 are designed for mowing and laying in swath of grain ear crops at separate harvesting.
The cutterbars are produced with a working width of 9, 1 metres. They are equipped with the original cutting system "Schumacher".
The drive is guaranteed for 4 years.
Aggregated with tractors of 1, 4 kn class.
Reduction of fuel and lubricant consumption by 2, 5 times.

Technical Specifications

Working width	9...9.1 m
Height	1660 mm
Width	10820 mm
Length	4860 mm
Weight	2300 kg
Working width	9...9.1 m
Type of product according to PP RF 616	Machines for harvesting cereals, oilseeds, pulses and cereal crops other
Type	Trailed roller
Type of cutting unit	Segment-finger of normal cutting
Reel type	Five-bladed with straight blades; Universal six-bladed eccentric blades
Productivity: basic time; shift time; operating time	6.5;5;5
Grain losses after the cutterbar	0.5 %
Set cutting height	80...250 mm
Operating speed	9
Transport speed	10
Number of service personnel	1
Reel shaft speed	28...50
Reel diameter	1380 mm
Number of conveyors	2 pc
Conveyor width	750 mm
Number of belts in the conveyor	5 pc
Window location	Central
Width of ejection window	1250 mm
Pacing of fingers and segments	76.2 mm
Knife drive	Planetary gearbox PRO DRIVE 85MVv GKF RS
Knife stroke	85 mm
Number of support wheels	3 pc
Wheel type, size	Pneumatic with tyres, TVL-2 10,0/75-15,3 or Ya387-1 6.50-16
Minimum turning radius of the machine : at the outermost outside point (outside); in the outer wheel track (inside)	8 m
Number of gears: belt; chain; cardan; gearboxes	5 pc
Number of lubrication points, total including: daily; periodic; seasonal	2;7;30
Overall dimensions in working position (without tractor): length; width; height	4860 mm
Cutterbar weight (dry)	2300 kg
Overall dimensions of the cutterbar in transport position (when driving on public roads): length; width; height	9850 mm
Ground clearance	315 mm
Average MTBF	75
Installed life	1600
Average service life	8 a
Maximum force of resistance to movement of regulating elements: when regulating horizontal reel position; at n	200
Specific fuel consumption	1.5
Operational labor intensity of assembly (reassembly) of the product at the place of use	20
Operational labor intensity of transfer to and from transport position	0.55
Operational-technological coefficients: technological service; reliability of technological process; use of	1
Knife oscillation frequency	600

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
