Trailed shredder TORNADO M350

Specialized Transport Trailers

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

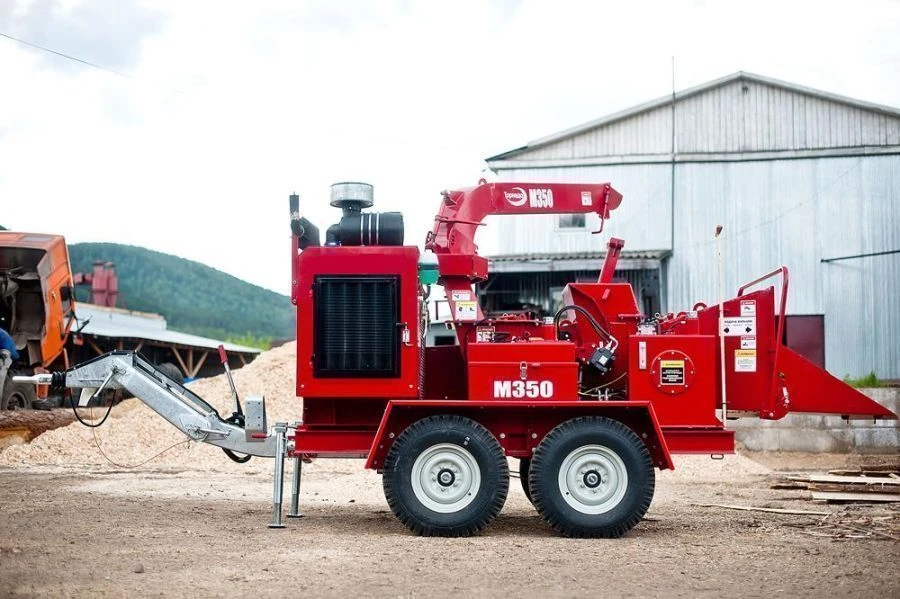

The trailed shredder TORNADO M350 is designed for processing and utilisation of wood and shrub vegetation up to 300 mm in diameter. TORNADO M350 is a specialised equipment with a diesel engine, fuel tank, hydraulic oil pumping station for power supply and control of the equipment functions, closed space for wood chopping, inlet chute for unshredded wood and outlet socket for ejection of shredded wood in the form of chips.
The chopping part of the trailed chipper is made on a specialised frame with 2 axles/4 wheels, equipped with an adjustable system for transport in trailed form. It has safety systems for the operator. On-board computer, which allows by means of sound signals and illuminated error codes, to see and detect faults in a timely manner. The computer also controls directly the process of work of the shredder, coordinating the work of the engine and shredding organ.

Specifications

Type of product according to PP RF 616 Trailers and semi-trailers other, not included in other groupings

Type Trailed shredder

Equipment according to specifications

Front track 1560 mm

Rear track 1560 mm

Payload 3500 kg

Wheel arrangement 4 wheels, no drive wheels

Base tractor lorry of appropriate load-carrying capacity

Climatic version UHL

drawbar Ring with an inner diameter of 76 mm with the possibility of quick adjustment of hitch height in the range from 460 mm to 1080 mm from ground level

frame the shredder frame and the trailer frame are a single and indivisible load-bearing structure of the equipment

Number of wheels 4 pc

Number of axles 2 pc

Number of revolutions of the shredding unit 1800

Hydraulic tank capacity 65 l

Fuel tank capacity Flat grinder, Specialised grinder l

Width of the inlet window (at the roller take-up line) 400 mm

Height of inlet window (at roll catch line) 310 mm

Feeding table ????????????????

Feed hopper width 1200 mm

Feed hopper height 780 mm

Knife type double-sided cutting edge

Number of knives 2 pc

Drum width 400 mm

Drum diameter 530 mm

Type of shredding unit Drum

Grinding diameter 300 mm

Feeding system Hydraulic feed, 2 rollers

Motor power 149 hp

Engine Diesel

Dimensions 5200*2050*2360 mm

Weight 3000 kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
