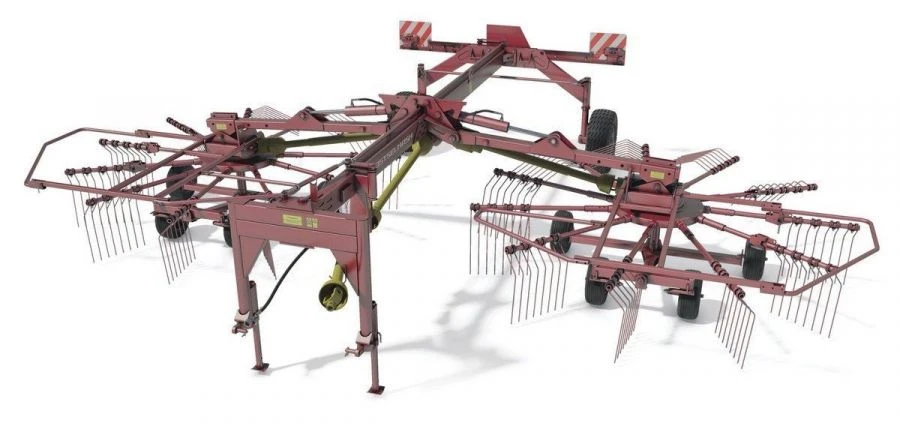

Trailed rotary rake GRP-807 "Kolibri Duo 807"

Hay Harvesting Machines

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

The Kolibri Duo trailed rotary rake is designed for raking grass from the swaths into swaths, wrapping and doubling hay swaths. The rakes are used in all zones of flat land use on fields with levelled relief, and are not intended for use on stony soils. The slope of harvested areas should not exceed 6 degrees and moisture content of harvested crops should not exceed 70%.
The rake is trailed and can be used with tractors of traction class 1,4 tonnes .

Specifications

Type of product according to PP RF 616 Hay machines

Width 8200 mm

Height 2200 mm

Capacity, ha/hour 8

Working width 7.3...8.1 m

Length 9200 mm

Operating speed 10

Weight 2600 kg

Transverse stability angle in combination with tractor, deg., not less 30

Power consumption, max. 40 kV

Tractor PTO speed, rpm 540

Number of service personnel 1

Completeness of crop raking into swath, at least 98 %

Total losses to yield, not more 2 %

Mass density of the formed swath, kg/m3, max. B1/B8 2100/900 MHz

Reliability coefficient of technological process performance, not less than 0.98

Operational labour intensity of monthly maintenance, not more than 0.2

Operational time availability factor 0.98

Readiness factor taking into account organizational time 0.97

MTBF of complexity group II and III of a single product, hours, not less 100

Service life 7 a

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
