Available for Import

Tracked snowmobiler TTM 4902TP

Snow Terrain Vehicles

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

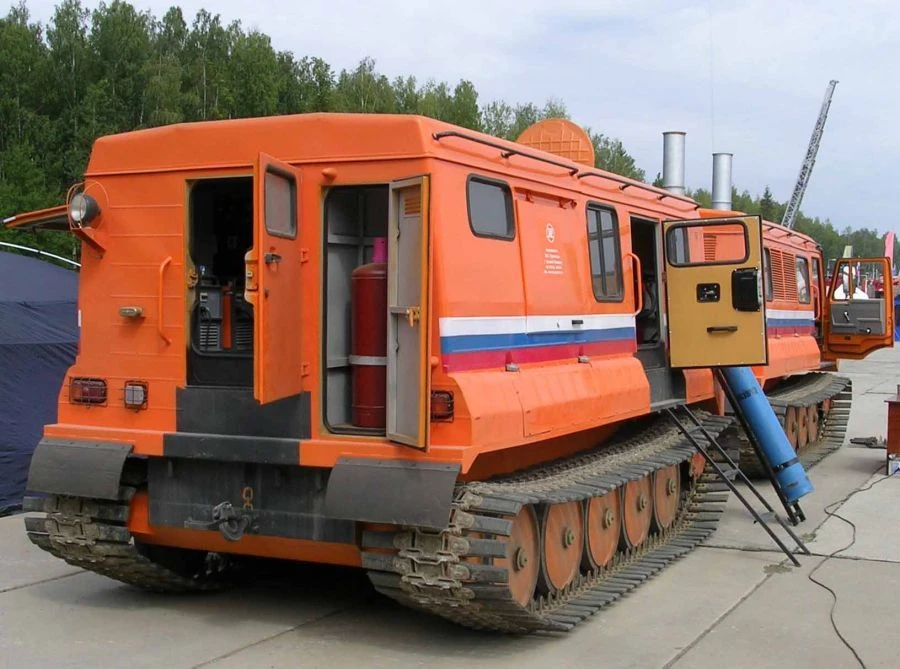

Snowmobiler TTM 4902TP is a technical aid designed for repair and emergency recovery work on main pipelines and other facilities in off-road conditions, including snow virgin land (without limiting the depth of snow cover), loose sands and swamps of all types with overcoming small water obstacles afloat. The body of the second link of the machine consists of a working compartment and a rear compartment separated by a soundproof partition. The working compartment on the right side has a side entrance door, inside behind the front wall has a compartment for an oxygen cylinder. The compartment is glazed on both sides. In the roof of the compartment there is a hatch for dismantling the GP, in the lid of which there is an emergency hatch. The rear compartment is designed for diesel-generator set and welding equipment. There is a door in the rear wall and a partition with a door for propane cylinder. The compartment has side hatches on both sides. The roof of the compartment is removable.

Specifications

Type of product according to PP RF 616 Snowmobile means of transportation

Mark TTM 4902TP

Fuel tank 760 l

Model TTM 4902TP

Power 320 hp

Curb weight 15.44 t

Payload 0.5 t

Range (by fuel) 500

Ambient temperature 40...45 °C

Caterpillar 760 mm

Average specific pressure on the ground 0.02 MPa

Overall dimensions, length 11570 mm

Overall dimensions, width on tracks with extensions 2940 mm

Overall dimensions, height 2700 mm

Ground clearance 400 mm

Minimum turning radius 10 m

Maximum highway speed (on land) 55

Maximum afloat speed 5

Cab capacity 6

Maximum roll angle on dry sodden ground, degrees 25

Maximum slope angle when travelling on dry sodden ground with full load, deg. 30

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
