Tracked snowmobiler TTM-3903GM

Snow Terrain Vehicles

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

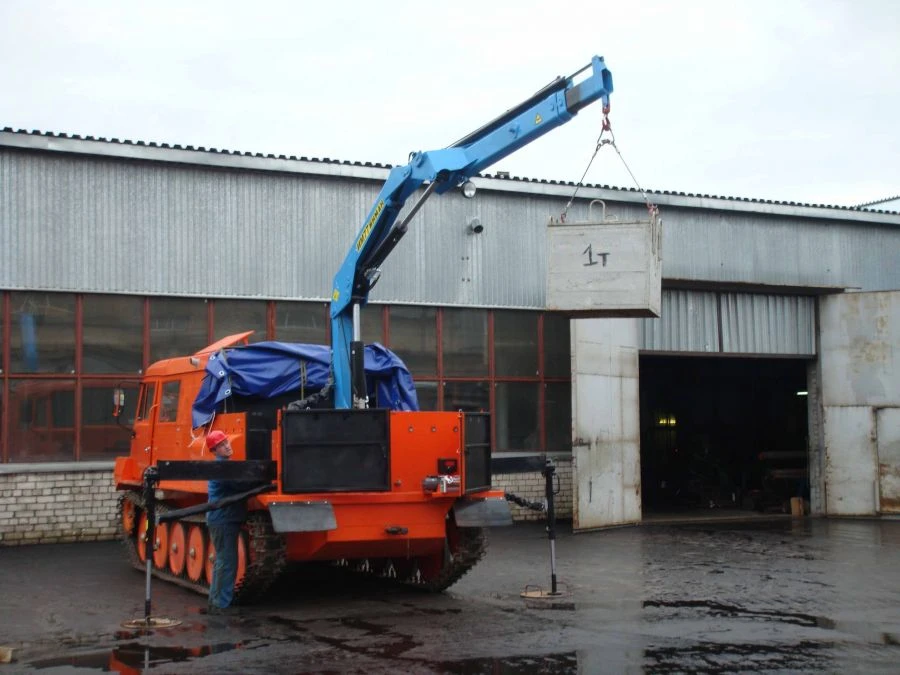

The floating snowmobile with crane-manipulator unit (CMU) has a welded, hermetically sealed body with a central insulated engine compartment. In the cargo compartment there is a crane-manipulator unit IM-77 (by agreement it is possible to equip the vehicle with CMU IM 40T-023 or Amco VEBA 808N-2S or similar, it is also possible to equip it with a single or double cradle).
The crane is designed for loading, unloading and transporting various cargoes, equipment, loading and unloading operations, as well as maintenance of power lines if equipped with a cradle in off-road conditions, including snowfields (without limiting the depth of snow cover), loose sands and swamps of all types with overcoming water obstacles afloat.
To ensure stability during operation, the crane-manipulator has two retractable legs, which in the transport position are pushed into the body dimension and tilted upwards, thereby not creating additional resistance to the movement of the machine off-road.

Technical Specifications

Type of product according to PP RF 616	Snowmobile means of transportation
Average specific pressure on the ground	0.0157 MPa
Overall dimensions, length	6480 mm
Overall dimensions, width on tracks with extensions	2870 mm
Overall dimensions, width on tracks without extensions	2500 mm
Overall dimensions, height	2888 mm
Ground clearance	400 mm
Minimum turning radius	2.2 m
Maximum lifting capacity of crane-manipulator unit IM-77	3000 kg
Maximum load lifting height	8 m
Cab capacity	6
Maximum afloat speed	5
Maximum highway speed (on land)	54
Model	TTM-3903GM
Power	185 hp
Curb weight	7.6 t
Payload	1 t
Range (by fuel)	600
Maximum roll angle, degrees	25
Ambient temperature	40...45 °C
Maximum lifting angle, degrees	30

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
