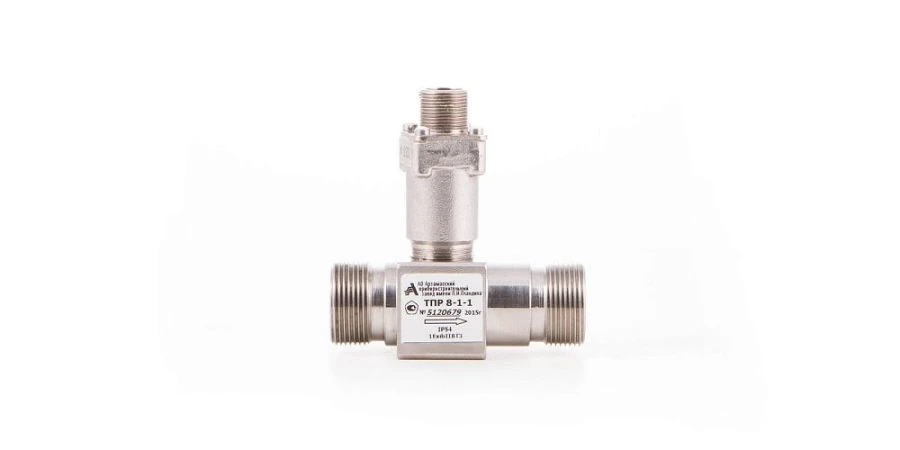

TPR Flow Converter - Turbine Type for Liquid Measurement

Available for Import

TPR Flow Converter - Turbine Type for Accurate Liquid Measurement

Flow Measurement Devices

Manufacturer:APZ OJSC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Turbine flow converters TPR are designed to convert the volumetric flow rate of liquid into a frequency electric signal of sinusoidal form. The area of application of converters - bench equipment, technological installations, metering points of various liquids, as well as in the composition of other equipment. Measured medium: non-aggressive lubricating liquids (hydrocarbon fuels, hydraulic system liquids, industrial oils); non-aggressive non-lubricating liquids (water, alcohol, ammonia); single-phase cryogenic liquids (oxide, energen); aggressive liquids (amyl melange I).

Depending on the diameter of the nominal passage, modifications are produced: TPR1, TPR2, TPR3, TPR4, TPR5, TPR6, TPR7, TPR8, TPR9, TPR10, TPR11, TPR12, TPR13, TPR14, TPR15, TPR16, TPR17, TPR18, TPR19, TPR20. Degree of protection against penetration of foreign objects, dust and moisture - IP54. Explosion protection marking - IExidIIBT6X.

Interval of verification is 1 year. Warranty period of 18 months.

Specifications

Meter type

Stationary

Measured flow rate range

TPR1: 0.003-0.01 l/s; TPR2: 0.004-0.016 l/s; TPR3: 0.005-0.025 l/s; TPR4: 0.008-0.04 l/s; TPR5: 0.012-0.06 l/s; TPR6: 0,02-0,1 l/s; TPR7: 0,03-0,16 l/s; TPR8: 0,05-0,25 l/s; TPR9: 0,08-0,4 l/s; TPR10: 0,12-0,6 l/s; TPR11: 0,2-1,0 l/s; TPR12: 0,25-1,6 l/s.

Diameter of nominal bore DU

TPR1-TPR2: 4mm; TPR3-TPR6: 6mm; TPR7-TPR8: 10mm; TPR9: 12mm; TPR10-TPR11: 15mm; TPR12-TPR13: 20mm; TPR14: 25mm; TPR15: 32mm; TPR16: 40mm; TPR17: 50mm; TPR18: 60mm; TPR19: 80mm, TPR20: 100mm.

Kinematic viscosity of measured medium

Up to 100 mm2/s (sST).

Medium temperature for aggressive liquids

-60 to +50 degrees Celsius

Medium temperature for non-aggressive and single-phase cryogenic liquids

-200 to +200 degrees centigrade
