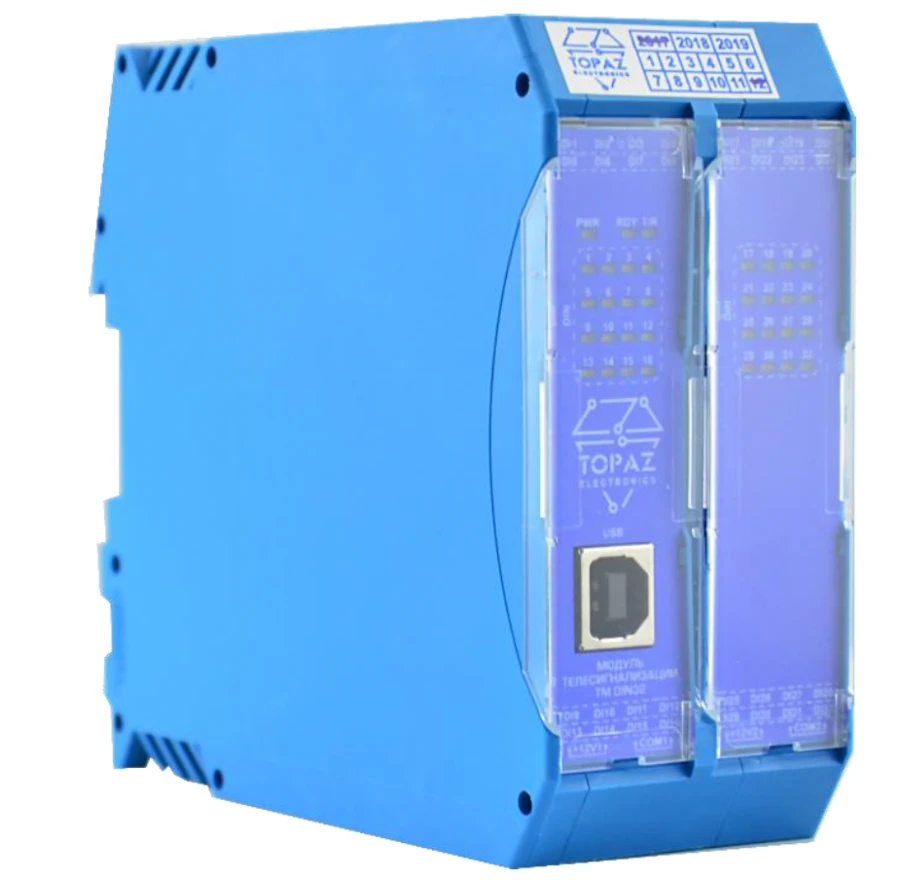

TOPAZ TM DIN telealarm modules
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description
Modules telesignalling TOPAZ TM DIN are produced according to technical specifications TU 4230-003-89466010-2012 "Telemechanics devices TOPAZ"
Modules are designed for use as a device for interfacing with the object (ODR) of the lower level, to perform the functions of telesignalling (TS) discrete state of objects with the possibility of counting the number of triggers.
The devices are referred to input-output devices.
Modules are designed for use as a device for interfacing with the object (ODR) of the lower level, to perform the functions of telesignalling (TS) discrete state of objects with the possibility of counting the number of triggers.
The devices are referred to input-output devices.
Specifications
Type of product according to PP RF 616
Industrial control and measuring machines
Number of TC channels
16; 32 pc
Number of Ethernet interfaces
1; 2 pc
Number of RS-485 interfaces
2 pc
Voltage at the input of the digital input channel
5 ÷ 220 (ac/dc) V
Maximum input voltage
350 V
Nominal value of input current at U = 24V
0.005 A
Input impedance
500...220000 ohm
Accuracy of time fixation of TV signals
0.001
Minimum pulse duration
0.0005
Nutrition
lv; 2lv; hv; 2hv
Performance groups according to GOST R 52931-2008
c2; p2
Degree of enclosure protection
ip20
Average time to restore serviceability
30
Average service life
30 a
Weight, not more
0.5 kg
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
