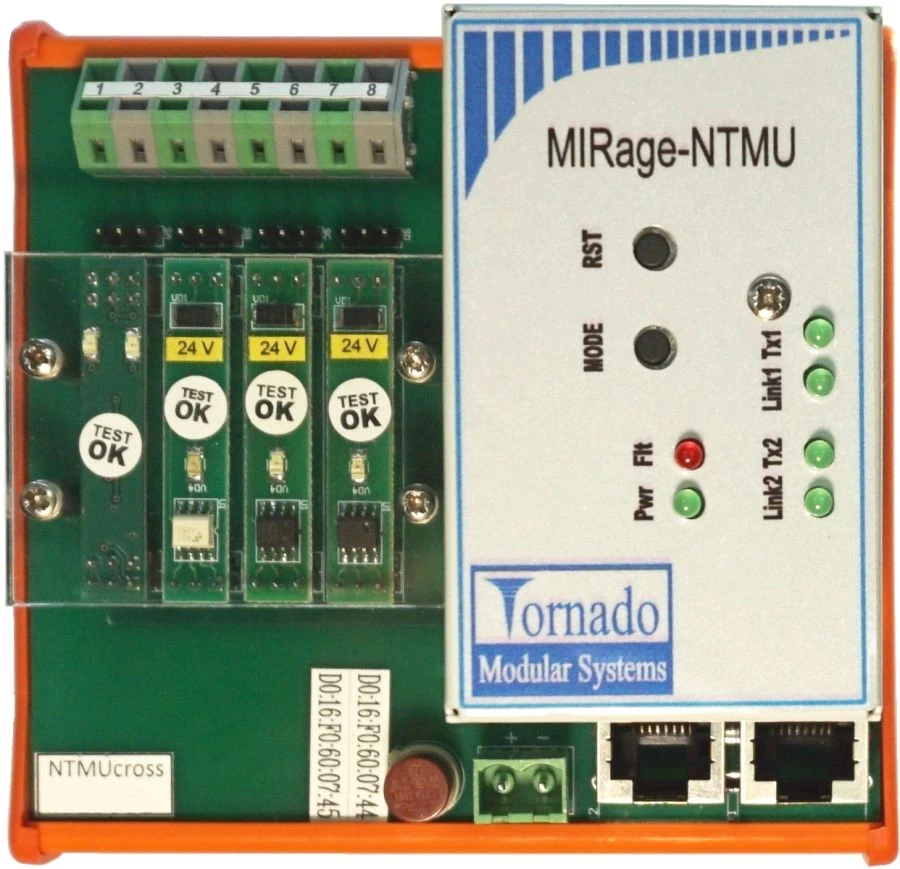

Timer device. Connection of 3 sensors Jaquet DSF (MIRage-NTMU-J)

Automatic Control Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

The MIRage-NTMU-J timer processing devices are designed to measure the time characteristics of periodic pulse signals and generate a pulse sequence with variable pulse repetition rate at a given rate of change of pulse repetition rate. The number of measuring channels (IC) of periods is 3, the number of IC of pulse generation is 1. Data exchange is carried out via redundant Ethernet interface via UDP protocol. When configuring and controlling the operating modes of the device, the ModBus protocol add-on is used, and the transmission of the flow of measured period values takes place in direct RAW mode without requests. MIRage-NTMU-J devices are designed for creation of automated process control systems (APCS) in various industries.

Technical Specifications

Number of period measurement channels	3 pc
Interface type	Ethernet 10/100BaseTX - 2 channels
Number of measuring channels for pulse generation	1 pc
Data transfer rate	100
Data exchange protocol	Modbus TCP/UDP slave
Reference oscillator frequency	16
Relative frequency error of the reference oscillator in the operating temperature range	0.005 %
Galvanic insulation	Individual
Overall dimensions	114x108x111 mm
Weight, not more	450 g
Wago terminal block, conductor cross-section up to	2.5 mm2
Operating temperature range	-25...70 °C
Consumption current, max.	75 mA
External supply voltage (+/- 15%)	24 V

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
