Time Interval Monitoring Complex ESICh-M for Subways - Accurate Time Display

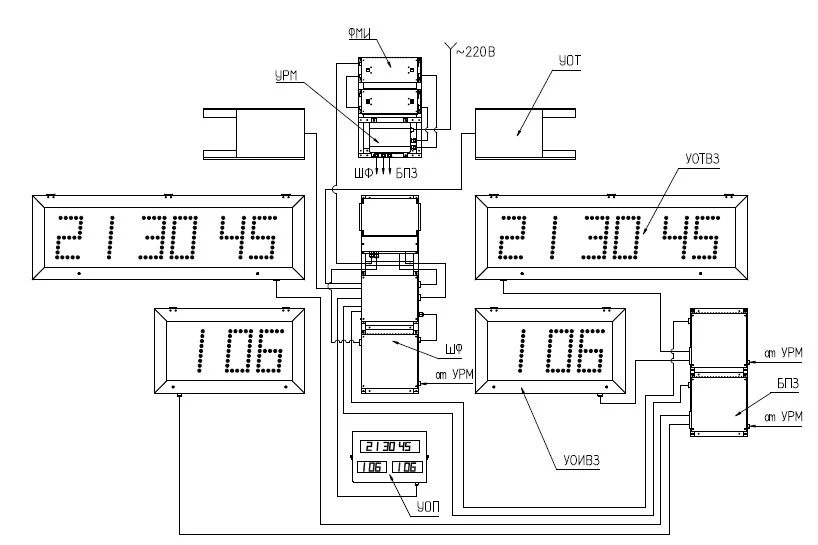

The ESICH-M complex is designed for counting and displaying the current time and inter-train time intervals in the underground. The information is displayed in Arabic numerals in seven-segment font. The devices, which make up the complex, are designed to work in conditions of crossing rooms and halls of the underground.

Basic technical data: Power supply voltage at the inputs of power supply units, V 220 +10/-15%. Maximum consumption of the power supply unit from the mains at full load, VA, not more than 100. Maximum consumption of the power supply unit from the power supply network under full load, VA, not more than 210.

Overall dimensions of the cabinet, mm 1080x600x180. Overall dimensions of UU, mm 306?296?170. Overall dimensions of RS, mm 306?279?79.

Overall dimensions BP, BPZ, mm 306?327?114. Overall dimensions of UOT, mm 310?545?235. Overall dimensions of UOD, mm 395?160?120.

Overall dimensions of UOP-1M, mm 415?285?120. Overall dimensions of UOTVZ-1, mm 1450?475?87. Overall dimensions of UOIVZ-1, mm 800?475?87.

Overall dimensions of UR-M, mm...
