Tilt sensor (DN) TSGE.003.010.000
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description

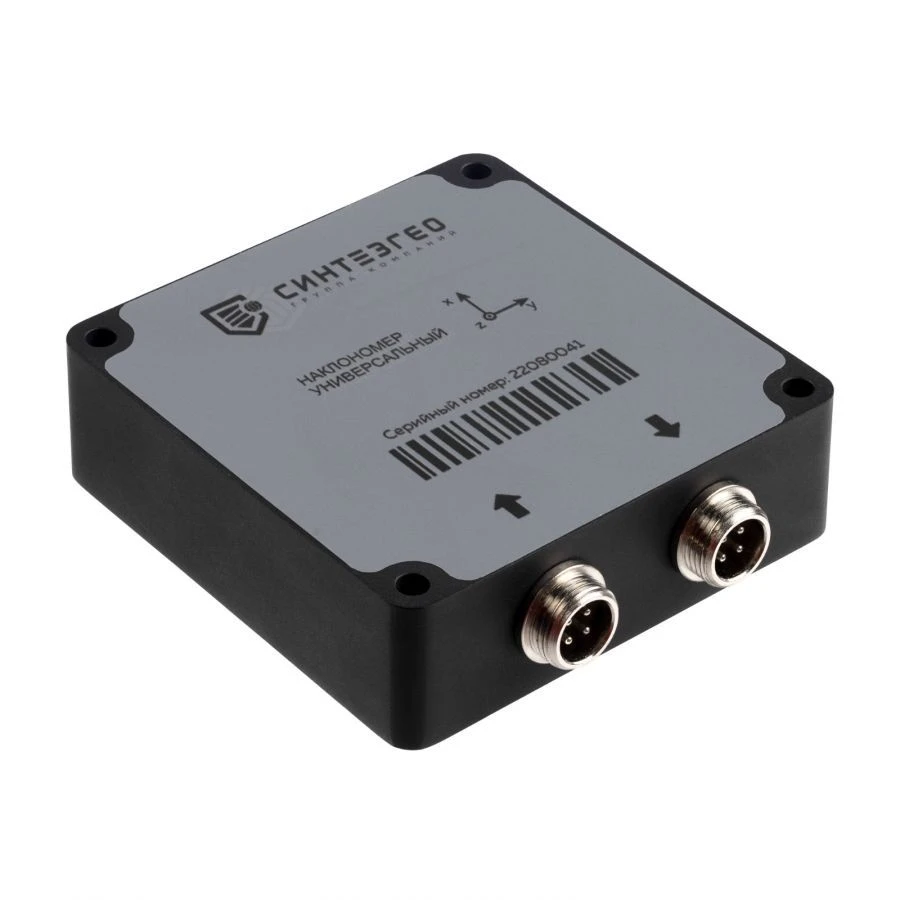

The tilt angle measurement sensor (DN) is designed to monitor the absolute or relative angular position of an object relative to the vertical. DN is used for static control of angular deviations of low-moving objects: buildings, structures, structures, dams, mine shafts, bridges, antenna-mast structures, radar antennas, missile launching tables and other objects where high-precision control of angular position is required. The DN is a sealed aluminium housing with a primary MEMS transducer, microprocessor and interface converter. DNs can be assembled in a daisy chain of up to 20 devices and connected by a common signal cable to a data logger, which processes the digital signal, sets the frequency of data reading from the DN and sends it to the data acquisition server. The range of DNs includes variants with horizontal and vertical fixing on the surface, the possibility of switching by means of an external connector or cable entry.
Specifications
Type of product according to PP RF 616
Other tools and instruments for measurement, inspection and testing
Warranty period of operation
5 a
Measuring range
0...10 °C
Dividing value (angle measurement step)
20
Vibration resistance
10...2000
Shock resistance
11
Maximum cable length
1000 m
Power supply voltage
12...24 V
Number of cable cores
4 pc
Diameter by insulation
0.85 mm
Cable diameter
4.8 mm
Weight (without cable)
0.94 kg
Warranty period of operation
1 a
Service life
5 a
Permissible temperature range for transportation, storage and presence in the structure to be measured
-40...80 °C
Operating temperature range
-30...70 °C
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
