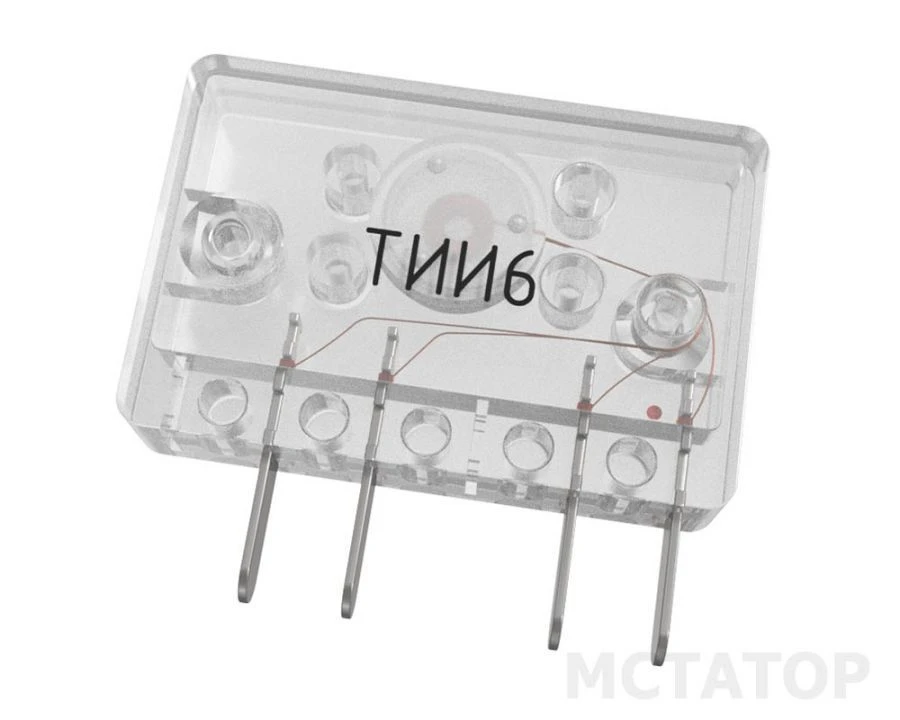

TII6 type pulse transformers

Electric Transformers

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

TII6 type pulse transformers of open design with operating voltage up to 24V and the product of pulse duration on the input pulse voltage of 0.1 and 6.3 µs?V. They are intended for operation in hermetically sealed structures of communication systems. Quality category "VP" and "OS".

Specifications

Primary winding inductance, not less than 0.01 or 0.60(×10^-3)

Capacitance between primary and each secondary winding, not more than 20 or 85(×10^-12)

Scattering inductance, not more 0.4 to 0.6(×10^-6)

Electrical insulation strength: DC voltage 150 V

Insulation resistance, not less 500 (×10^6) ohm

Magnetizing current, not more 10 (×10^-3) A

Transformation ratio, max. 1

Product of pulse duration by input pulse voltage 0.1 or 6.3 (×10^-6)vb
