Three-way flanged valve LS.3F065.P25 Available for Import

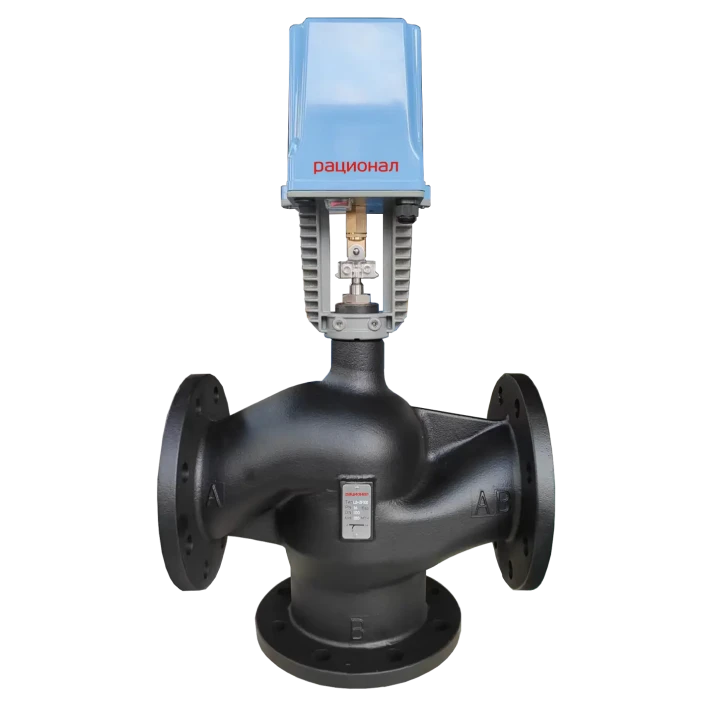

Three-way flanged valve LS.3F065.P25

Regulating Valves
Manufacturer: Rational LLC
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Available Models

LS-3F Flanged Three-Way Valve for Temperature Regulation Three-way flanged valve LS.3F200.P40

Description

The LS-3F three-way flanged valves are designed for flow and temperature control in heating, hot water supply and technological systems of various industries. Three-way valves are controlled by electric actuators providing discrete (three-position) control of valves. Materials: body - cast iron (GGG40), stem, seat - stainless steel (SS410), seal - fluorocarbon rubber. Supply voltage 230V, 50/60Hz.

Specifications

Type of product according to PP RF 616
Control valves, return valves, safety valves, distribution and mixing valves, separating valves, combined valves, reducing valves
Liquid temperature
-20...+150
Flow capacity kvs
63
Maximum working pressure
16
Nominal diameter
DN65
Management
Electric drive
