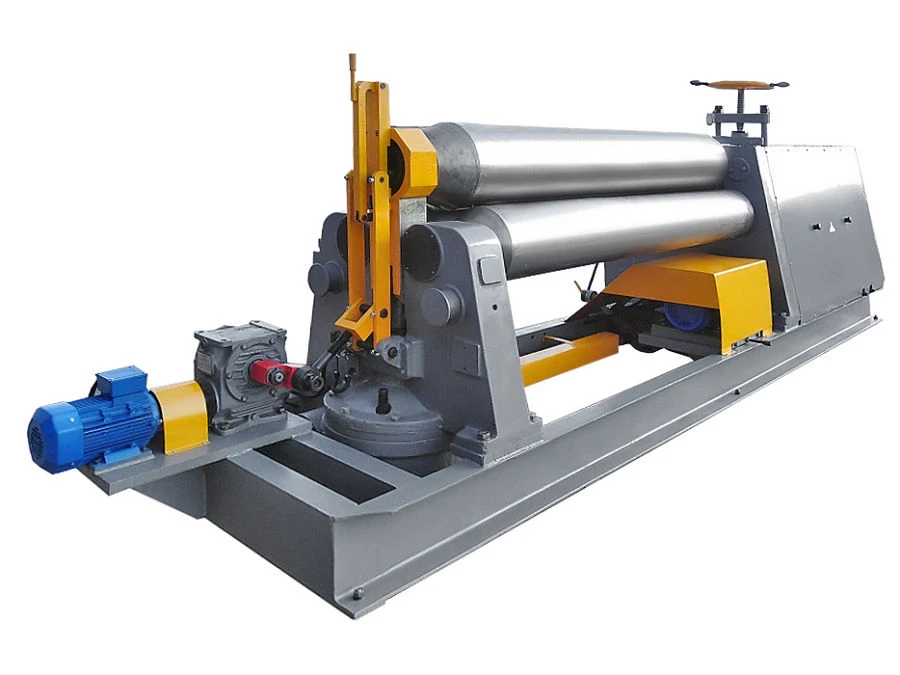

Three-roll sheet bending machine IB 2223

Metal Bending Machines

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

The machine is designed for bending cylindrical and conical shells from sheet material in cold standing with thickness up to 20mm and width up to 2000mm with yield strength t=250 MPa (25 kgf/mm.sq.). The machines are allowed to bend tapered blanks from sheet material if they are equipped with the appropriate fixture. The dimensions of conical blanks are regulated by the technical documentation on the machine. In order to expand the technological capabilities of the machine can be equipped with tools for bending angles, strips, squares, pipes, channels.

Technical Specifications

Type of product according to PP RF 616	Metal bending machines
Machine weight with means of mechanization	12000 kg
Main motor power	30 kW
Diameter of top roll	335...345 mm
Smallest bending radius	520 mm
Sheet width	2000 mm
The greatest thickness of the bending plate made of material with yield strength t=250 MPa (25 kgf/mm2):	20
Motor power of the top roll drive motor	7.6 kW
Tilt support drive motor capacity	1.1 kW
Motor power of the shell support mechanism (optional)	1.5 kW
Bottom roll diameter	280...290 mm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
