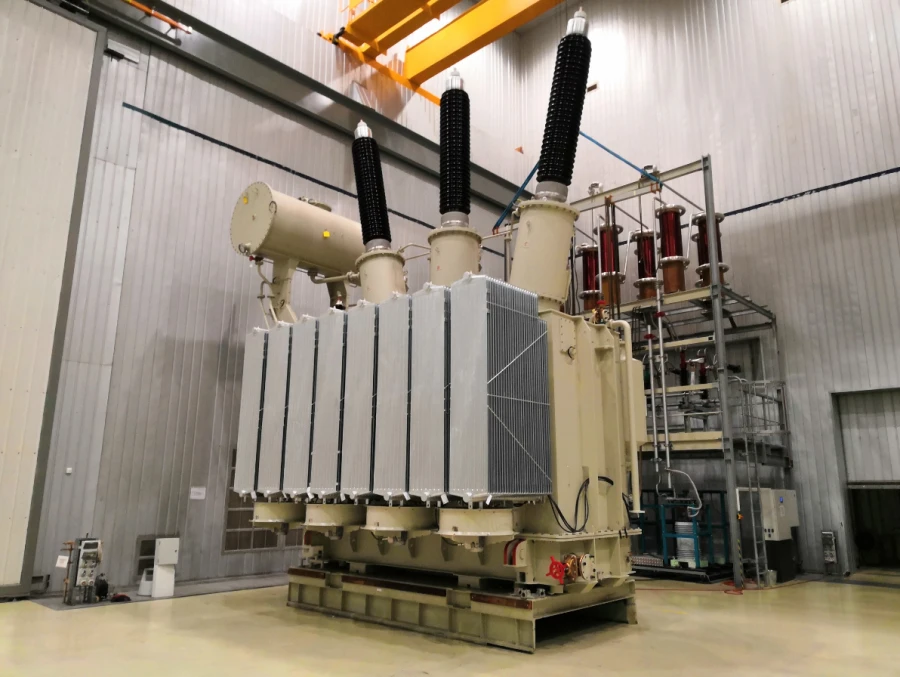

Three-Phase Oil Power Transformer TRDN-63000/220 for Electrical Systems Conversion
Manufacturer:
Voronezh Transformer LLC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
Functional purpose: conversion by electromagnetic induction of one or more AC systems into one or more other AC systems.
Main consumer qualities and parameters: transformers are manufactured in accordance with GOST 11677-85, GOST 17544-85.
Rated power: 63000 kVA; Rated current of HV winding: 158,14 A, rated winding current; Rated current of LV winding: 909,33 A; Rated voltage of HV winding: 230 kV, rated voltage of LV winding: 20 kV; Number of phases: 3; Number of windings: high voltage winding, low voltage winding; Dielectric type: transformer oil.
Main consumer qualities and parameters: transformers are manufactured in accordance with GOST 11677-85, GOST 17544-85.
Rated power: 63000 kVA; Rated current of HV winding: 158,14 A, rated winding current; Rated current of LV winding: 909,33 A; Rated voltage of HV winding: 230 kV, rated voltage of LV winding: 20 kV; Number of phases: 3; Number of windings: high voltage winding, low voltage winding; Dielectric type: transformer oil.
Specifications
Length
7815 mm
Width
4636 mm
Height
8141 mm
Type of insulation
Oil
Possibility of regulation under voltage
Armoured glass
Transformer type
Power
Rated power
63000
Nominal voltage
220
Share your requirements for a quick response!
Instant response in 15 minutes
Best wholesale prices guaranteed
Direct from manufacturer
Delivery & Payment
Shipping Terms
Delivery Time
Sea freight: 30-60 days (depending on destination)
Air freight: 14-21 days (for urgent orders)
Payment Methods
