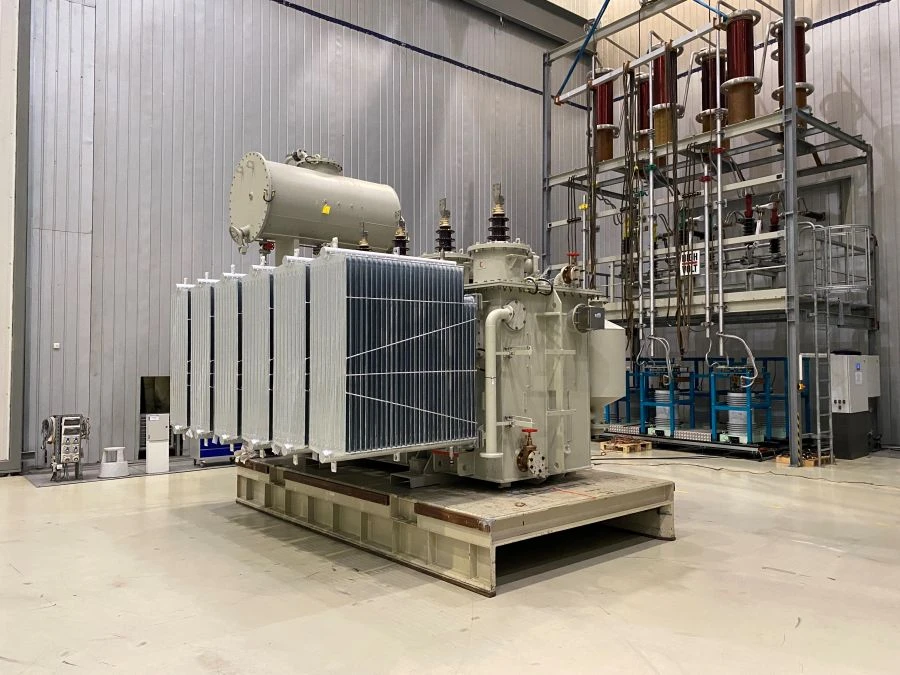

Three-Phase Oil Power Transformer TMN-10000/10 for Reliable Energy Conversion
Manufacturer:
Voronezh Transformer LLC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
Functional purpose: transformation by electromagnetic induction of one or several AC systems into one or several other AC systems.
Main consumer qualities and parameters: transformers are manufactured in accordance with GOST 11677-85, GOST 11920-85.
Rated power: 10000 kVA; Rated current of HV winding: 549,9 A, rated winding current; Rated current of LV winding: 916,4 A; Rated voltage of HV winding: 10,5 kV, rated voltage of LV winding: 6,3 kV; Number of phases: 3; Number of windings: high voltage winding, low voltage winding; Dielectric type: transformer oil.
Main consumer qualities and parameters: transformers are manufactured in accordance with GOST 11677-85, GOST 11920-85.
Rated power: 10000 kVA; Rated current of HV winding: 549,9 A, rated winding current; Rated current of LV winding: 916,4 A; Rated voltage of HV winding: 10,5 kV, rated voltage of LV winding: 6,3 kV; Number of phases: 3; Number of windings: high voltage winding, low voltage winding; Dielectric type: transformer oil.
Specifications
Length
5185 mm
Width
3743 mm
Height
2941 mm
Transformer type
Power
Type of insulation
Oil
Possibility of regulation under voltage
Armoured glass
Rated power
10000
Nominal voltage
10
