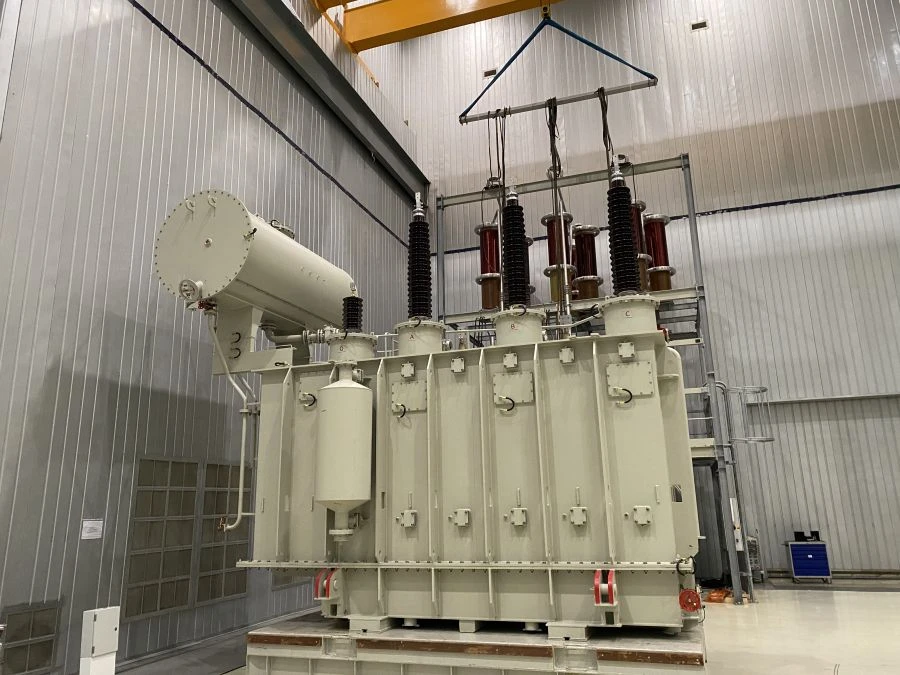

Available for ImportThree-Phase Oil Power Transformer TD-63000/110 for Efficient Energy Conversion
Manufacturer:Voronezh Transformer LLC
Price:Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
Functional purpose: conversion by electromagnetic induction of one or more AC systems into one or more other AC systems.
Main consumer qualities and parameters: transformers are manufactured in accordance with GOST 11677-85, GOST 12965-85.
Rated power: 63000 kVA; Rated current of HV winding: 300,6 A, rated current of LV winding: 3464,1 A; Rated voltage of HV winding: 121 kV, rated voltage of LV winding: 10,5 kV; Number of phases: 3; Number of windings: high voltage windings, low voltage windings; Dielectric type: transformer oil.
Main consumer qualities and parameters: transformers are manufactured in accordance with GOST 11677-85, GOST 12965-85.
Rated power: 63000 kVA; Rated current of HV winding: 300,6 A, rated current of LV winding: 3464,1 A; Rated voltage of HV winding: 121 kV, rated voltage of LV winding: 10,5 kV; Number of phases: 3; Number of windings: high voltage windings, low voltage windings; Dielectric type: transformer oil.
Specifications
Type of insulation
Oil
Possibility of regulation under voltage
no
Transformer type
Reducing
Number of transformer phases
Three-phase
Number of windings
Double-winding
Rated power
63000
Nominal voltage
10.5
Share your requirements for a quick response!
Instant response in 15 minutes
Best wholesale prices guaranteed
Direct from manufacturer
Delivery & Payment
Shipping Terms
Delivery Time
Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)
Payment Methods
