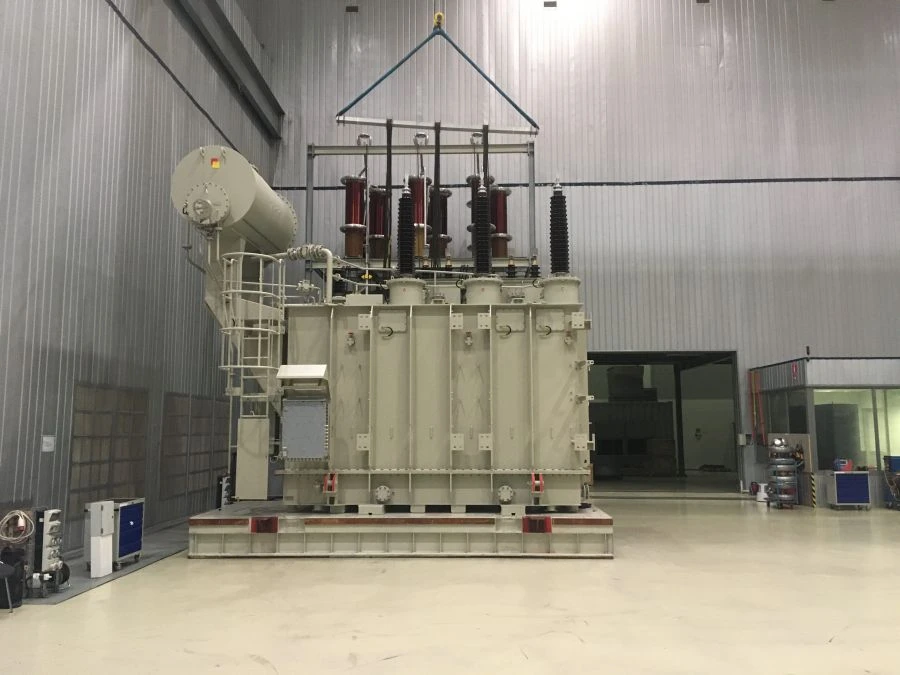

Three-phase oil-filled power transformer TRDTSN-63000/110
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description
Functional purpose: conversion by electromagnetic induction of one or more AC systems into one or more other AC systems.
Main consumer qualities and parameters: transformers are manufactured in accordance with GOST 11677-85, GOST-12965-85.
Rated power: 63000 kVA; Rated current of HV winding: 316,3 A, Rated current of HH1 (HH2) winding: 1732,1 A; Rated voltage of HV winding: 115 kV, rated voltage of HH1 (HH2) winding: 10.5 kV; Number of phases: 3; Number of windings: high voltage windings, low voltage windings; Dielectric type: transformer oil.
Main consumer qualities and parameters: transformers are manufactured in accordance with GOST 11677-85, GOST-12965-85.
Rated power: 63000 kVA; Rated current of HV winding: 316,3 A, Rated current of HH1 (HH2) winding: 1732,1 A; Rated voltage of HV winding: 115 kV, rated voltage of HH1 (HH2) winding: 10.5 kV; Number of phases: 3; Number of windings: high voltage windings, low voltage windings; Dielectric type: transformer oil.
Specifications
Length
7242 mm
Width
4235 mm
Height
5536 mm
Type of insulation
Oil
Possibility of regulation under voltage
Armoured glass
Transformer type
Power
Rated power
63000
Nominal voltage
110
