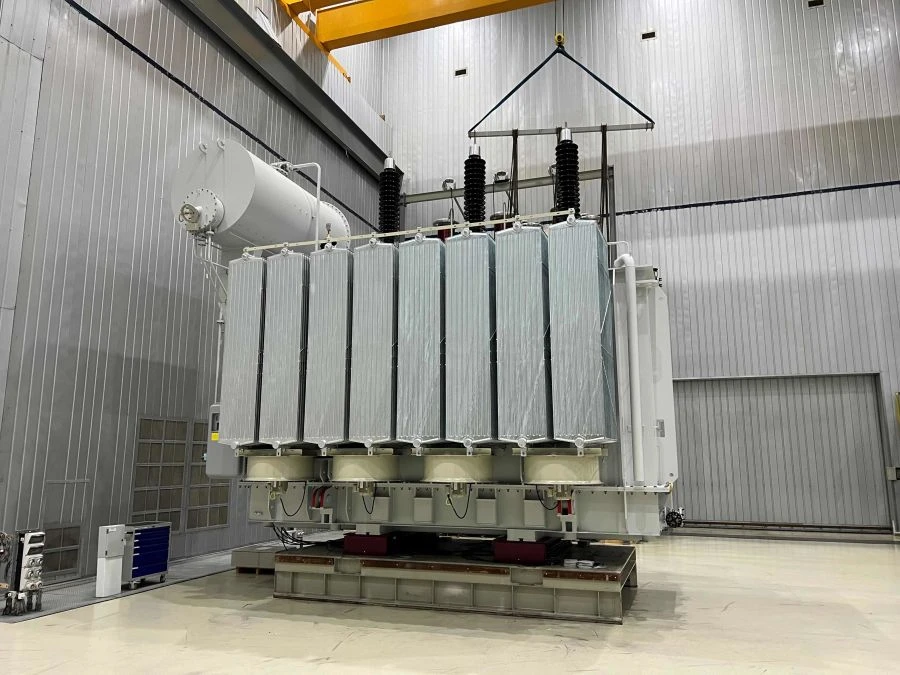

Three-phase oil-filled power transformer TDTN-80000/110

Functional purpose: conversion by electromagnetic induction of one or more AC systems into one or more other AC systems. Main consumer qualities and parameters: transformers are manufactured in accordance with GOST 11677-85, GOST R 52719-2007.Rated power: 80000 kVA; rated current of HV winding: 401,6A; rated current of CH winding: 1199,7A; Rated current of LV windings: 7331,4A; Rated voltage of HV winding: 115 kV, Rated voltage of SN windings: 38,5 kV; Rated voltage of LV windings: 6,3 kV; Number of phases: 3; Number of windings: high voltage windings; medium voltage windings; low voltage windings; Dielectric type: transformer oil.
