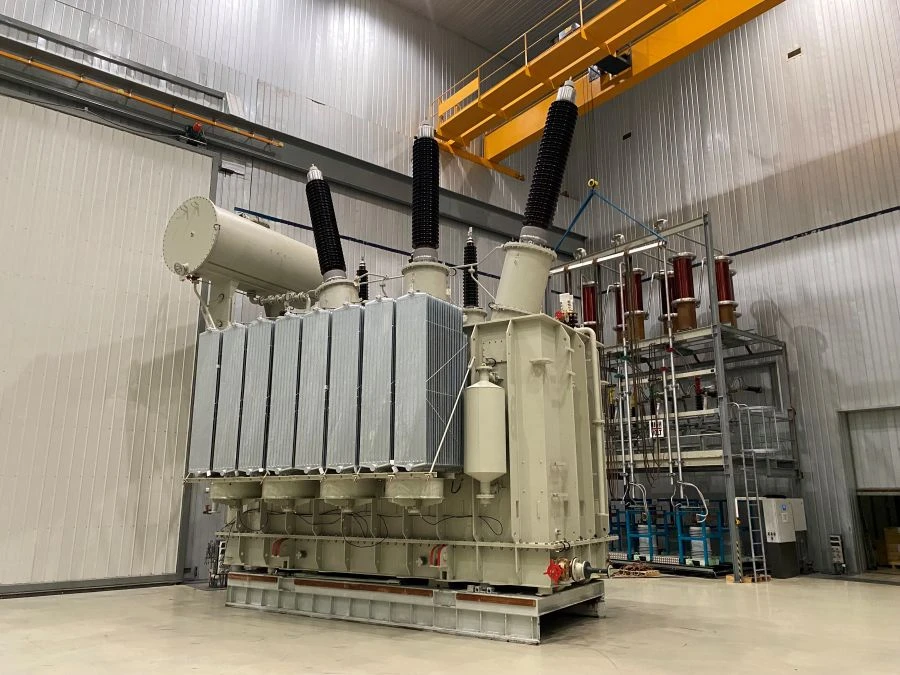

Three-phase oil-filled power transformer TDT-125000/220-U1
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description
Functional purpose: conversion by electromagnetic induction of one or more AC systems into one or more other AC systems.
Main consumer qualities and parameters: transformers are manufactured in accordance with GOST 11677-85, GOST 17544-85, GOST 12965-85.
Rated power: 125000 kVA; rated current of HV winding: 298,2 A, rated current of SN winding: 596,4; Rated current of LV winding: 6873,2 A; Rated voltage of HV winding: 242 kV, Rated voltage of SN winding: 121 kV rated LV winding voltage: 10.5 kV; Number of phases: 3; Number of windings: high voltage winding, medium voltage winding, low voltage winding; Dielectric type: transformer oil..
Main consumer qualities and parameters: transformers are manufactured in accordance with GOST 11677-85, GOST 17544-85, GOST 12965-85.
Rated power: 125000 kVA; rated current of HV winding: 298,2 A, rated current of SN winding: 596,4; Rated current of LV winding: 6873,2 A; Rated voltage of HV winding: 242 kV, Rated voltage of SN winding: 121 kV rated LV winding voltage: 10.5 kV; Number of phases: 3; Number of windings: high voltage winding, medium voltage winding, low voltage winding; Dielectric type: transformer oil..
Specifications
Height
8899 mm
Width
5212 mm
Length
8968 mm
Nominal voltage
220
Rated power
125000
Possibility of regulation under voltage
Armoured glass
Type of insulation
Oil
Number of transformer phases
Three-phase
Transformer type
Oil
