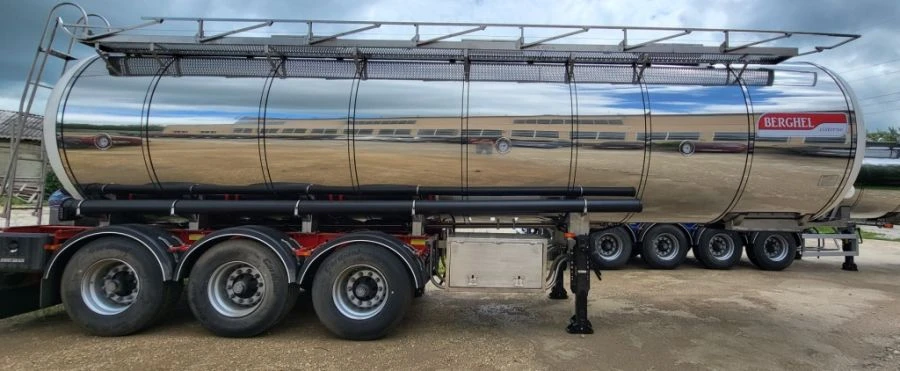

Three-axle tank semitrailer, of load-bearing construction, commercial name BERGHEL 9116P4, type 9116P4, swivelling chassis bogie

Semi-trailer food tank. Volume 27 000 litres. Number of sections 1- 4. The system of washing of chambers. Internal material of a bulb stainless steel AISI-304. Material of an external case stainless steel AISI-304 "mirror". 1-4 bottom valves Du 80, (product cut-off inside the tank). 1-4 filler necks, with breathing valves. Environmental boxes "square". One discharge pipe Du 80 (with an additional disc gate at the outlet), led into a sealed compartment located at the rear of the tank. Thermal insulation ISOVER foiled, thickness -100mm. (in accordance with GOST-9218-86 "Provides a change in product temperature 2C for 10 hours at a temperature difference between the product and ambient air of 30C).
