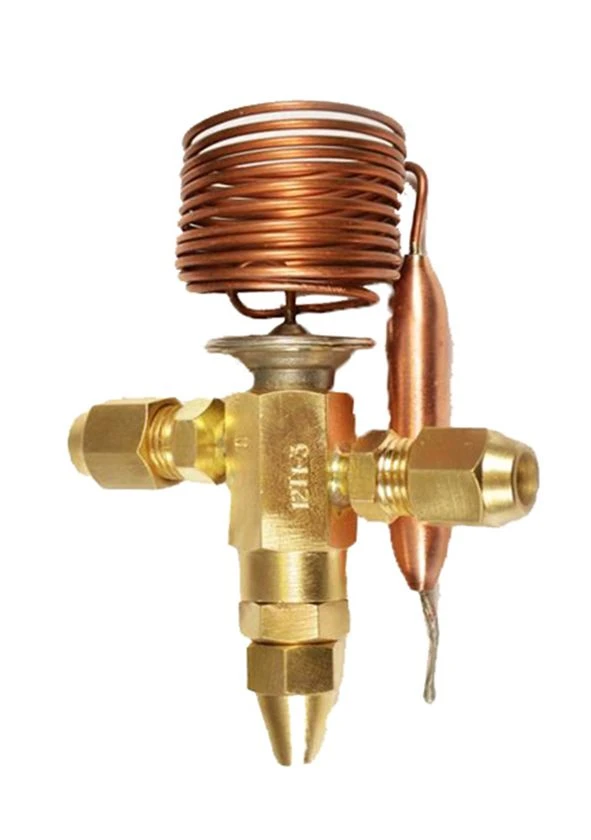

Thermostatic control valve T1

Thermostatic regulating valves T1, TV1 with internal pressure equalisation (hereinafter referred to as valves) are designed for automatic regulation of refrigeration agent supply to the evaporator of the refrigeration plant depending on the overheating of refrigeration agent vapours behind the evaporator.
Controlled media: refrigerants 12, 22, 134A.
Valves 12T1 are designed for operation on refrigerant 12 in the range of boiling temperature from minus 40 to plus 10 C with condensation temperature up to 70 C. The valves 12T1 are designed for operation on refrigerant 12 in the range of boiling temperature from minus 40 to plus 10 C with condensation temperature up to 70 C.
Valves 22T1 are designed for operation on refrigerant 22 in the boiling temperature range from minus 40 to plus 10 C with condensation temperature up to 60 C. The valves 22TB1 are designed for operation on refrigerant 22 in the boiling temperature range from minus 40 to plus 10 C with condensation temperature up to 60 C.
Valves 22TB1 are designed for operation on refrigerant 22 in the range of boiling temperature from minus 50 to minus 25 C with condensation temperature up to 60 C. The valves are designed for operation on refrigerant 22 in the range of boiling temperature from minus 50 to minus 25 C with condensation temperature up to 60 C.
134T1 valves are designed for operation on 134A refrigerant in the boiling temperature range from minus 40 to plus 10 C with condensation temperature up to 70 C.
The weight of valves should be not more than 0,45 kg.
Average service life - not less than 12 years
