Thermal housing WIR26P-12V

Radio Equipment Parts

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

Thermal housing WIR26P

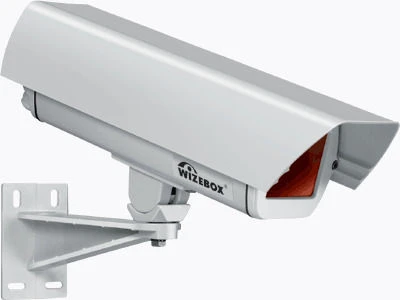

The WIR26P-12V thermal housing protects a fixed lens thermal imager from adverse environmental influences in extremely cold climates.Type: Special purpose thermal housings.Series: INFRARED. Diameter of cables for connecting the thermal housing 4-8 mm.Weight of the complete thermal housing 3,2 kg. Maximum load on the bracket 50 kg with a safety factor of 2.6.Coating: powder paint, polyester, colour: light grey (RAL7035).Enclosure material: extruded aluminium; die-cast aluminium.Viewing window material: transparent in the area from 7 to 14 microns.Fasteners: stainless steel.Sealing gasket material: Armlene. Material of cable glands: brass.Sight glass made of material transparent in the area from 7 to 14 microns.Double-sided luminescent coating ensures a transmission coefficient of 94%.

Technical Specifications

Maximum power consumed by the thermal enclosure	17,5W
Input voltage supplied to the enclosure	9...18 V
Dimensions of usable volume	200x73x66mm
Housing material	Extruded aluminum
Environmental protection class	IP66
Operating temperature range	-65...55 °C

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
