Thermal housing explosion-proof Relion-TKV-400-M

Security System Components

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

?????????? ??????-???-400-?-?

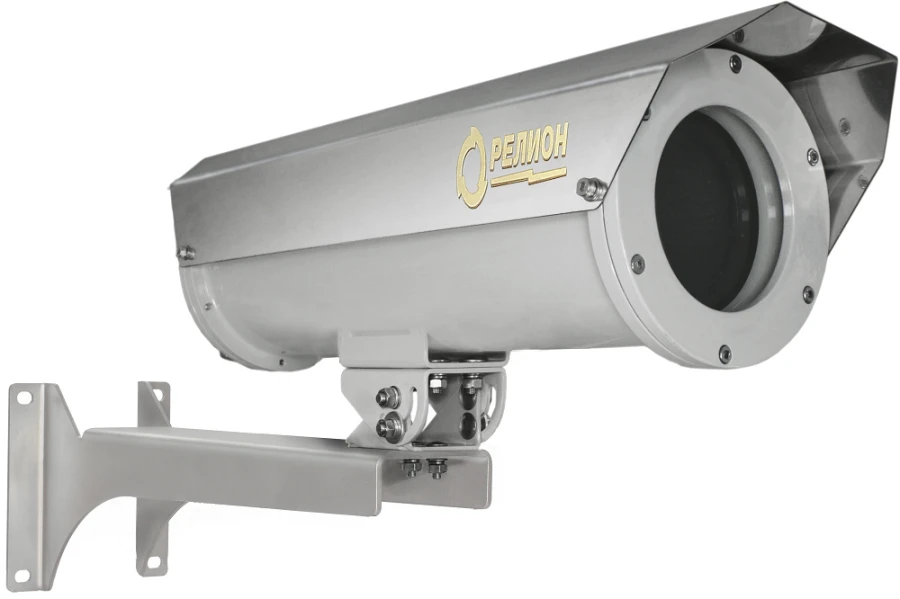

Explosion-proof thermal housings. Useful internal volume 85x85x260 mm. Explosion-proof thermo-shroud is designed to protect video equipment in security and technological video surveillance systems in hazardous areas, as well as in conditions of exposure to aggressive media. Explosion protection marking PB Ex db I Mb / 1Ex db IIC T6 Gb / Ex tb IIIC T85°C Db allows to use the shroud with the equipment installed inside in hazardous areas of classes "1" and "2", as well as in underground workings of mines, mines and their above-ground structures. The enclosure is made of low-carbon galvanised steel with polymer powder coating. Full dust and water resistance IP66/IP68 allows to use the thermocoat in rooms with humidity up to 100%, strong dustiness, as well as in open areas in difficult weather conditions. The operating temperature range of heated housings is -65 ÷ +55 ºC.

Technical Specifications

Housing material	Galvanized steel
Degree of protection by shell according to GOST 14254	IP66/IP68
Explosion protection marking	RV Ex db I Mb/1Ex db IIC T6 Gb/Ex tb IIIC T85°C Db
Temperature range	55 °C
Internal usable volume	85x85x260 mm
Overall dimensions	320x165x600 mm
Weight	10 kg
Video camera supply voltage	B1/B8 2100/900 MHz W

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
