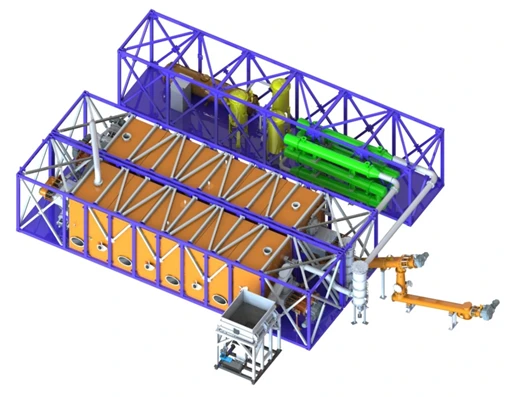

Thermal destruction units, type UTD

The product is produced in continuous operation mode
The name of the model of the installation is defined in accordance with the designation of modification and is indicated in the passport. Unit model name designation: "UTD-X-Y",
where UTD-X - designation of the plant modification,
Y - nominal capacity of the unit, kg/h for continuous operation mode (based on processing of low-watered sludge)


The purpose of the Unit is thermal destruction of organic waste to produce pyrolysis gas, furnace fuel and technical soil.

1. technical characteristics of the Unit:
Nominal capacity of the Unit - from 200 kg/hour to 1000 kg/hour (based on processing of low-watered sludge);
Operating mode - continuous;
Temperature of waste processing - up to 560 °?;
The list of processed wastes - rubber technical products (RTI), used oils, oil sludge, drilling wastes (soils contaminated with oil products, drilling sludge on hydrocarbon basis, oil-containing ... .
