TFR series telecom cabinet

Metal Storage Cabinets

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

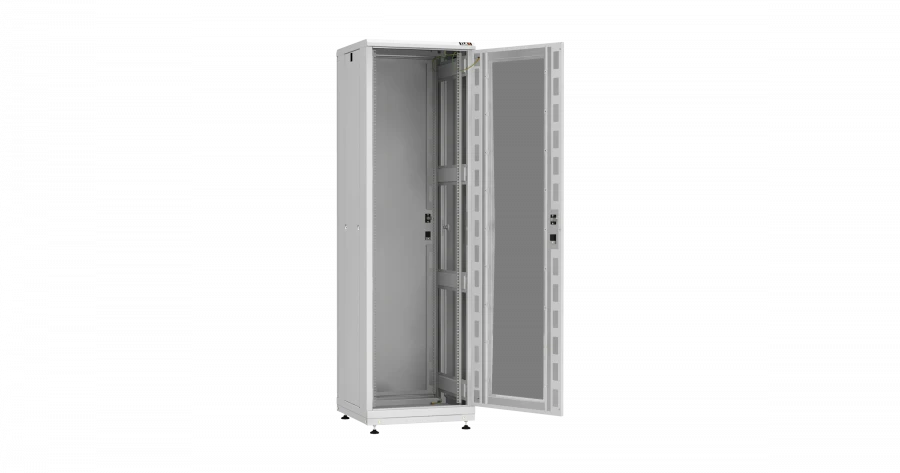

Floor cabinet series "Practical II" TFR-R is designed for installation of network and communication, cross, active, passive, fibre-optic equipment inside office and industrial premises. The cabinet has two doors with an opening angle of more than 180 degrees and removable side panels, provides access for installation and maintenance of equipment from four sides. The presence of spring hinges at the doors allows you to quickly change the opening from left to right. To ensure forced ventilation, the ventilation openings are adapted for installation of TLK fan units for 2, 4 and 6 fans. Cable entry and exit is realised through cable gland openings located in the base and in the ceiling panel. The cabinet is made in the 482.6 mm GOST 28601-90 (19-inch IEC 297 standard).

Technical Specifications

Depth	1000 mm
Type of product according to PP RF 616	Metal cabinets other
Type of accommodation	Floor
Maximum distributed load	800 kg
Frame type	collapsible
Height	945...2234 mm
Width	800 mm
Color	Light gray (RAL 7035), Black (RAL 9005)
Assignment	Telecommunication floor cabinet
Weight	58.2...140.6 kg
Material	Cold-rolled steel
Degree of protection	IP20
Type of floor support	Adjustable supports; castors
Availability of fasteners to the support (pole)	no
Type of front door(s)	Single leaf door. With filling: metal, glass, perforation.
Type of rear door(s)	Single leaf door. With filling: metal, glass, perforation.
Height, U	18;24;33;42;47
Usable depth	910 mm
Type of side panels	Detachable, lockable, single. Filling: metal.
Type of door lock	Single-point locking locks
Front door material	Cold rolled steel 1mm
Rear door material	Cold rolled steel 1mm
Side panel material	Cold rolled steel 1mm
Frame material	Cold-rolled steel 1.5 mm
Material of mounting profiles	Galvanised steel 1.5mm
Type of coloring	Powder-coated, impact-resistant, polymer-epoxy coating
Glass	Tempered, tinted in mass (5%), 4 mm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
