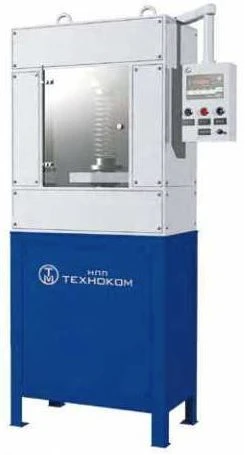

Test bench for springs (model IP)
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description
Designed for testing compression springs of safety valves. Testing of springs by three parameters: 1) three-fold compression of the spring by static load with checking of residual deformation; 2) compression by maximum working load with measurement of spring height at such load; 3) compression of the spring to a certain size with measurement of load value. It is possible to carry out cyclic tests in automatic mode: according to the programme.
Specifications
Range of monitored loads
10...50000 kg
Height of springs under test in free state
100...500 mm
Outside diameter of springs to be tested
25...300 mm
Type of product according to PP RF 616
Industrial control and measuring machines
Power consumption, max.
4 kW
