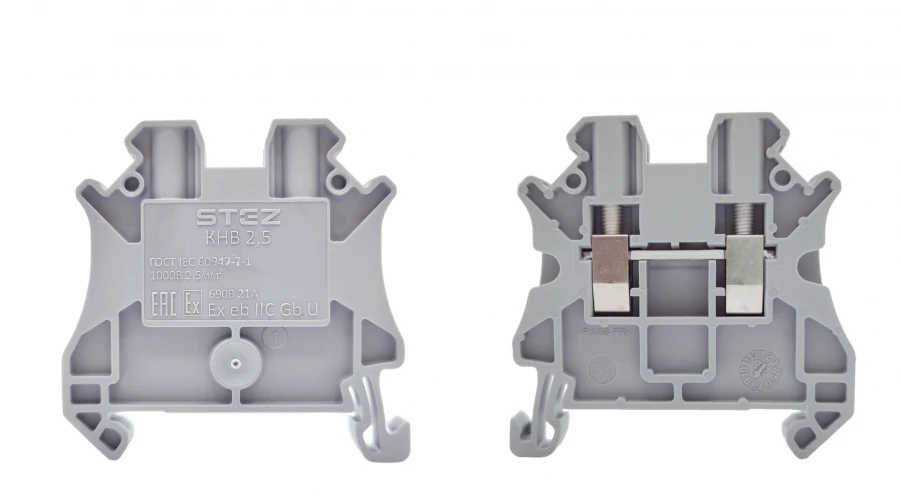

Terminal KHB 2.5-2

Feed-through terminal with screw type of connection, nominal cross-section 2,5 mm2. Rated voltage: 1000 V, rated current: 24 A.

- version, corresponds to the type of explosion protection Ex e (GOST 31610.7);
- certificate of conformity to ?? ?? 012/2011;
- two rows for installation of jumpers;
- range of cross-sections of the connected conductor from 0,2 to 4 mm2;
- category of resistance to burning PV-0 (GOST 28157);
- wide operating temperature range, -60 °C ... + 80 °C (taking into account heating at nominal parameters);
- number of pieces in the package: 100;
- country of origin - RF;
- colour variation available.
