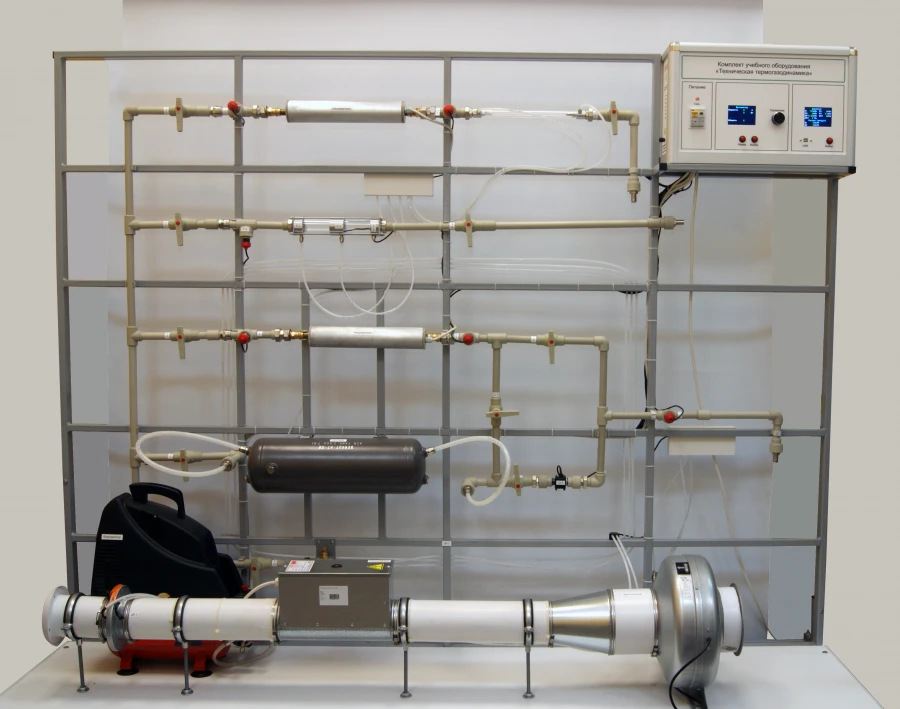

Technical Thermogas Dynamics Educational Equipment Set for Lab Experiments

Typical set of training equipment "Technical Thermogasodynamics" is designed for laboratory work on the basics of gas dynamics in higher and secondary educational institutions. The stand allows to determine the main characteristics of air, as well as to study the processes associated with it. Technical characteristics.

Overall dimensions of the stand: Length - 2200 mm; Width - 700 mm; Height - 1800 mm. Highest power consumption: 1 kW. Power supply from single-phase AC mains: Voltage 220V, frequency 50Hz.

Stand composition. The stand is a frame base made of metal profile painted with powder paint. The base has swivelling wheel supports with brakes.

On the frame base is mounted the control unit of the stand, as well as the system of pipelines and investigated sections. The control unit, made of a metal profile with a body made of ABS plastic, light colour with a texture "shagreen", to ensure resistance to the scratch....
